Boerkey - Compact Machine Dolly - w Poly Wheels – Kit w Handles and Case – Set Capacity 12 tons
Model KF3KIT4
Availability: Usually Ships Within Same Day
Purchase Orders Accepted with approved credit
Call Us for Emailed Quotes, Consultations, Orders, or POs
Call 1-800-786-6112
International Shipping Options
See Options in Cart
Capacity
12 Tons
26,400 lbs

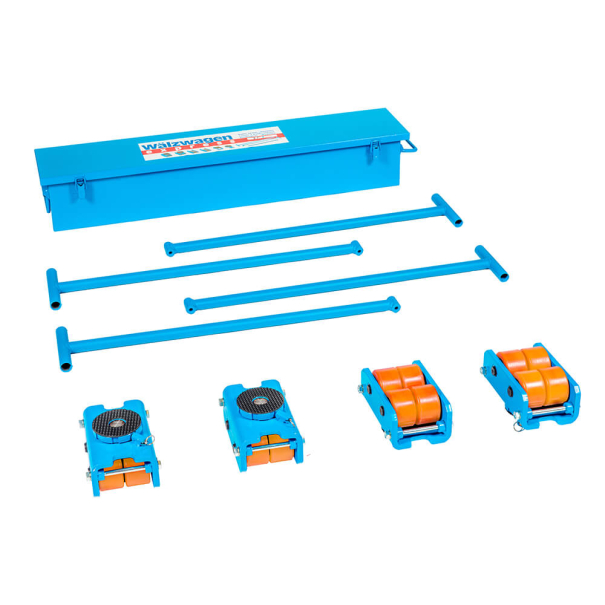

Includes
4 compact machine dollies, 4 handles, and 1 case
Manufacturing
Original Inventor and Manufacturer of Machine Rollers
Börkey - Since 1945
Toolwell: Exclusive North American distributor for Boerkey
- US-based Sales
- Stocked and Shipped from the US
- Engineering & Lifetime Technical Support
Quick Info
Includes
- Four compact machine dollies. (Color: Blue)
- Four turning handles.
- One case.
Uses:
- Machinery moving & material handling.
Wheels:
- Floor-protective polyurethane wheels.
Application:
- Not freely steerable. Instead, maneuverability: Rolls in set direction, Stop, Turn, Roll in new direction.
- Ideal for straight-line and sideways movement of loads.
Features:
- Small, compact, and portable. Ideal for toolbox.
- Lockable swivel tops with rubber load pad.
Manufacturer: Börkey ("Boerkey") - Made in Germany
Specifications
Capacity Per Dolly (Tons)
3
Dimension - Height (In)
4.6
Dimension - Length (In)
8.7
Dimension - Width (In)
5.8
Manufacturer
Boerkey
Max Speed At Full Load (Ft/Min)
164
MPN
11R3129 KIT
Set Capacity (Tons)
12
Weight (Lbs) - Product weight
114
Weight (Lbs) - Shipping weight
135
Wheel Diameter (In)
3.1
Wheels (Total Number)
4
Product In Use
Börkey Color Coding
Identifying Colors:
Blue: Standard Machine Dollies (Included on this US model)
Maroon: Machine Dollies with Hardened Frame
Also-Bought Products
Description
Machine Dolly Information
Model Series:
- U.S. Model Series: KF
- Manufacturer Part Number (MPN): 11R3129 KIT
- Manufacturer product name: Machine Dolly Transport Kit 12T
Uses:
- These dollies are not freely steerable. Dollies are made to roll in one direction, then dollies must come to a stop, be turned or repositioned to then roll in a new direction.
- The locking pin on the turntable keeps the dollies from swimming out of allignment.
- The advantage of the dollies is that loads can be rolled in a straight, turned AND sideways direction.
- Dollies are small and portable, ideal for an on-the-go toolbox.
Features:
- Poly wheels for floor protection.
- Turnable swivel top with rubber load pad.
- Swivel top locks every 45 degrees to keep dollies in allignment.
Included:
- Four (4) Machine Dollies
- Four (4) Turning Handles
- One (1) Case
Construction:
- Robust carbon steel frame construction.
- Wheels with ball bearings.
- Hardened steel axles.
- Turntable supported by thrust bearing.
Corrosion Resistance:
- Zinc-phosphate coated frame for basic corrosion resistance.
Applications:
- The Compact Machine Dollies are made for small machine moving and repositioning jobs.
- Compact, small and portable makes the compact machine dollies are a good choice for general construction.
Manufacturer:
- Manufactured by Börkey
- Made in Germany
Other Important Information:
- When using 4 (or more) dollies, load may rock on uneven surface, increasing load weight applied to any dolly. Therefore, select suitable rated machinery dolly capacity carefully.
- Precautionary measures must be taken for use on inclines to avoid run-away loads!
- When mixing and matching compact machine dollies (or different load supports), keep the load at same loading height. Otherwise, dollies will tip or become point-loaded.
