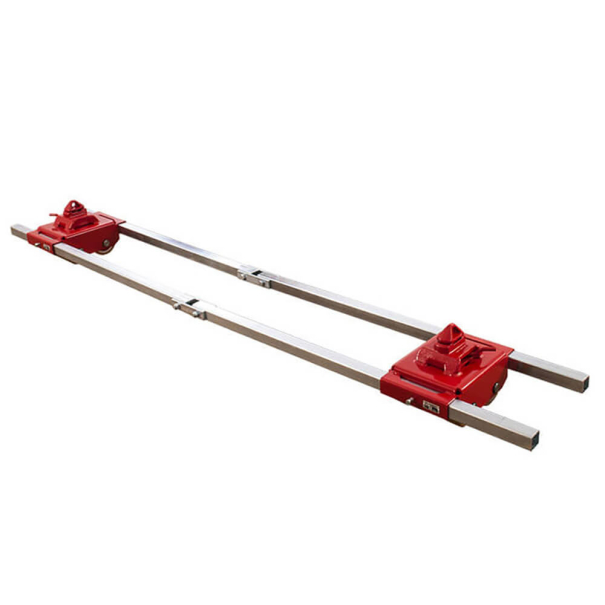

JUNG - Container Dolly - Straight-line - Capacity 20 tons / 40,000 lbs - MPN JFB20G + TL

Model Y20
Availability: Usually Ships Within Same Day
$5,045.00
Purchase Orders Accepted with approved credit
Call Us for Emailed Quotes, Consultations, Orders, or POs
Call 1-800-786-6112
Buy online now or create a quote in cart
International Shipping Options
See Options in Cart
Capacity
20 tons
40,000 lbs
Includes
One straight-line unit

Quick Info

Version
  • Outdoor: Container dollies with large wheels and outfitted with Twist-Lock fittings for use on outdoor asphalt
Includes
  • Two interconnected steerable front cassettes with pulling handle
  • Two straight-line rear cassettes with connecting bar
Manufacturer: JUNG - Made in Germany
Functionality
  • Container dollies fit any 8 ft wide (any length) ISO container.
  • Move loads with uneven weight distribution and loads without center support.
Performance
  • Container dollies will roll & steer easily at max capacity, where others would fail to roll.
  • Possesses safety capacity above rated capacity.
  • Patented JUWAthan wheels will not damage floors

Functionality

Specifications

Capacity (Tons)
20
Capacity Of Each Load Cassette (Tons)
10
Distance Between Cones (in)
89
Floor Condition
For Rough Floors
Height (In)
11.8
Height To Top Of Fitting (In)
11.8
Manufacturer
JUNG
MPN
JFB 20 G TL
Type
Outdoor (twist-lock)
Use in environment
Indoor and Outdoor
Warranty
5 Years
Weight (Lbs) - Product weight
214
Weight (Lbs) - Shipping weight
280
Wheel Diameter (In)
5.5
Wheel Type
JUWAthan
Width Fitting To Fitting (In)
89

Wheels


5.5" Wheels   |   7.1" Skate Height
Non-Floor Damaging     For Level Floors
Patented JUWAthan+ wheels: Material baked in oven onto core for toughness & elastic performance characteristics.

Wheel Size: Fewer large diameter wheels - compared to using a greater number of small diameter wheels - maintains ease of rolling of larger loads. Wheel size 3.3" and 3.5" for level floor and 5.5" and larger additionally for asphalt use.

Wheel series: G-half (5.5" x 2.3" x 1.4" ID)

Product In Use

Customer supplied - Pictures
Products in use - Video

Manufacturing




Made by JUNG - Since 1972
       25+ Years of Parts Available

Toolwell: Exclusive North American distributor for JUNG
  • US-based Sales
  • Stocked and Shipped from the US
  • Engineering & Lifetime Technical Support

Product Guides & Documents

Printable Details Printable Details
Engineering Drawings Engineering Drawings
Functions Explained Functions Explained
Pressure on Thin Floors Pressure on Thin Floors
Wheel Details
Warranty
Capacity & Safety Factor
Quality Standard
Look-Alikes
Common Configurations
Certifications
Manpower Requirements
Importance of Skate Size

Description

JUNG Freight Container Dollies

Use JUNG container dollies to move ISO shipping containers with standard width of 8 ft (96 inches). Containers can be of any length including standard half-size (20ft) or standard size (40 ft). Dollies can also be used to move platforms outfitted with the same ISO corner holes.

JUNG container dollies are Made in Germany and offer the highest reliability, ease of use and function employing superior technology, engineering, and manufacturing quality. Our container skates provide stable dependable support for load transport, roll & turn easily, and move freight containers safely even at the maximum rated capacity. These shipping container movers offer the following features:

Key Advantages:

  • Container dollies fit any 8 ft. wide (any length) ISO Container.
  • Dollies move loads with uneven weight distribution and loads without center support.
  • Available in 2 versions
    • Indoor: Container dollies are low profile and outfitted with cone style shipping container fittings for use on smooth surfaces.
    • Outdoor: Container dollies with large wheels are outfitted with twist-locks to safely secure dollies to freight container for use on pavement.
  • Container dollies will roll & steer easily at max capacity, where others would fail to roll.
  • Dollies possess safety capacity above rated capacity.
  • Patented JUWAthan wheels will not damage floors.
  • Made in Germany
  • Manufactured by JUNG
  • US based Sales and Lifetime Technical Support
  • Parts available for all products dating back 40+ years.

Uses:

  • Use container dollies for moving standard-width ISO shipping containers or platforms with 8ft-wide container fittings.
  • For transporting loads on concrete, asphalt, or steel plates.

Features:

  • When used in a standard configuration with a steerable front and straight-line rear skate, skates are freely steerable with maneuverability of a car: The front steers while the rear follows.
  • Steerable dollies can be connected to a forklift or towing vehicle and skates will follow in any direction. Skates can also be pushed backwards.

Container Fittings

  • Smaller container dollies come with low-profile cone fittings. These spikes sit snugly inside the corner holes and prevent any slipping on level ground.
  • Large dollies come with twist-lock fittings. Once inserted into the corner hole of the container, a lever is turned to lock and anchor the dolly to the container.

Manufacturer:

  • Manufactured by JUNG
  • Made in Germany
  • For 50+ years

Included:

  • The steerable front dollies ("X"-models) come with two individual interconnected load cassettes, with a pulling handle. The pulling handle is outfitted with a towing eye for attachment to a forklift
  • All straight-line rear dollies ("Y"-models) include a set of two straight-line load cassettes with connecting bar(s). Dollies can be used without connecting bars.

Wheels:

  • All container dollies are outfitted with patented JUWAthan wheels.
  • Wheel material is specifically engineered for elasticity, providing unsurpassed floor protection, shock absorbency, largest footprint at lowest rolling and turning resistance.
  • The material molds around an obstacle and keeps on rolling instead of getting locked up by the obstacle. No stop, up & over action required like with other wheels.
  • Wheel material has extremely long life and extremely low failure rating.
  • For smooth and rough floors, for floors with cracks and dirt.
  • With sealed ball bearings against contamination with dirt for both inside and outside use.
  • Spreads out weight over larger footprint to provide low pressure on floors.
  • Low break-out & low rolling resistance.
  • Low push-pull force and low manpower requirements.
  • Reliable under toughest working conditions.
  • Wheels provide superior performance and durability over traditional polyurethane, composite, and steel wheels.

Dolly Sizes:

  • Wheel size and overall skate height increases with increased load bearing capacity.
  • This assures consistently low rolling resistance and reduces the risk of point-loading wheels.
  • Larger wheels can bridge larger obstacles and can handle rougher floor conditions.

Construction:

  • The container skates are built using 4-way steel bending technology with frames that twist under excessive forces to prevent fractures, while maintaining functionality.
  • Materials including steel and wheel material are specifically manufactured for its use. We do not use untested garden-variety materials.
  • Factory is ISO certified, uses state-of-the-art production tools including welding robots to assure each product meets consistent quality.
  • Each dolly is outfitted with an anti-slip load pad.

Quality Level

  • Made in Germany
  • All freight container dollies have significant safety capacity above the rated load bearing capacity so all products can be used the maximum rated capacity.
  • All new products undergo long testing period in the lab and in the field before release to public.
  • All products are tagged with a serial number and any defects are traced.
  • All load moving dollies come with a 5-Year manufacturer's warranty; Exception: All electrical and air-powered products come with a 1-Year manufacturer's warranty.

Parts & Service:

  • Container dollies are built modular so components can easily be replaced.
  • Toolwell provides lifetime technical and parts support.
  • Toolwell provides support beyond just sales. We frequently advise customers on load moving applications many years after products have been purchased.
  • Engineering level support available
