JUNG - Battery Powered Machine Skates - 360 Set - Load Capacity 30 tons - Pulling Capacity 30 tons

Model EP15R14
Availability: Usually Ships Within Same Day
$154,268.00
Purchase Orders Accepted with approved credit
Call Us for Emailed Quotes, Consultations, Orders, or POs
Call 1-800-786-6112
Buy online now or create a quote in cart
International Shipping Options
See Options in Cart
Set Capacity
30 tons
60,000 lbs
Includes
One powered skate and two straight-line cassettes

Manufacturing



       Made by JUNG - Since 1972

Toolwell: Exclusive North American distributor for JUNG
  • US-based Sales
  • Products Stocked and Shipped from the US
  • Engineering & Lifetime Technical Support

Quick Info

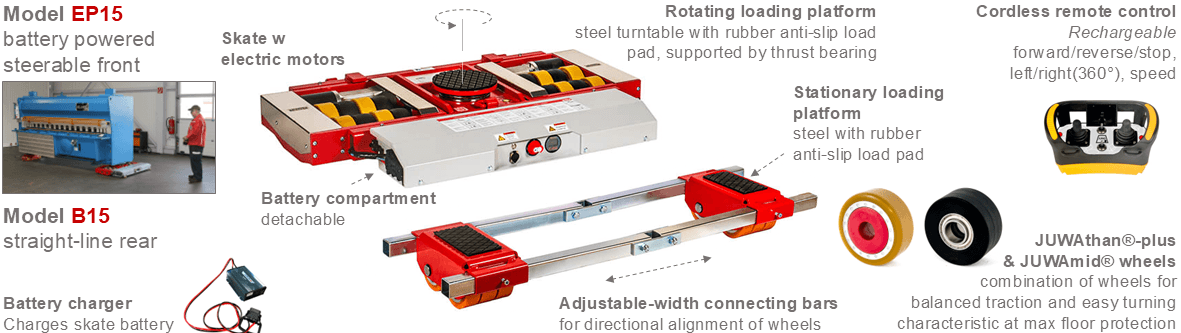

With one powered skate under the front of the load, and one under the rear, load can be maneuvered 360 degrees. Requires two operators, one to control each remote control.

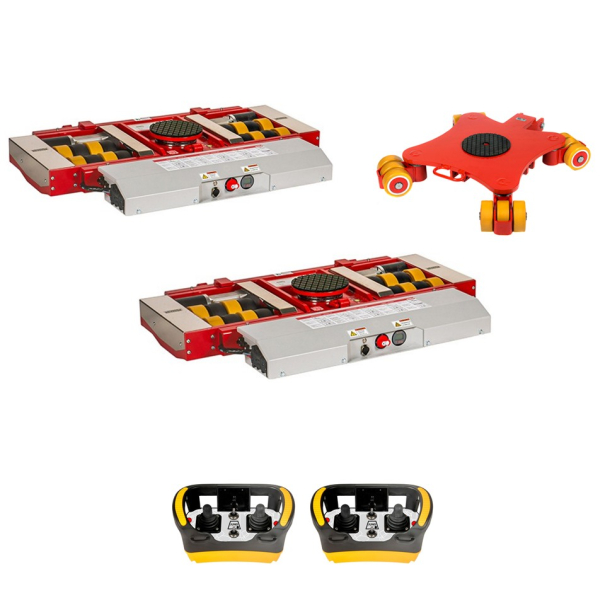

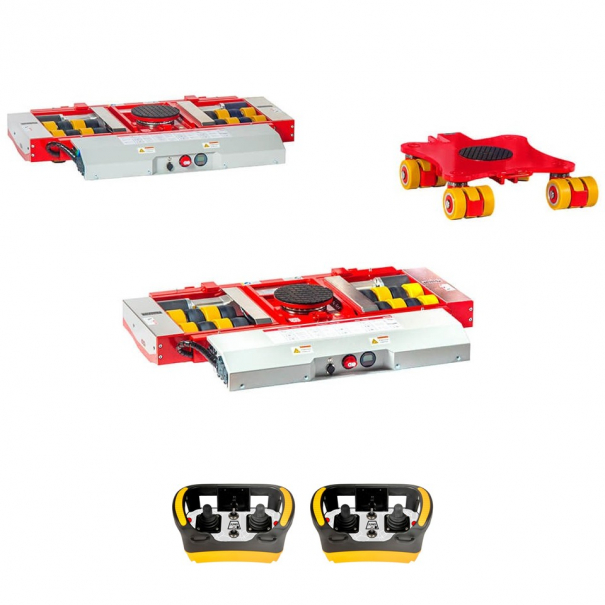

Includes
  • EP15: Two battery-powered machine skates, each with battery & charger and each with remote control & charger.
  • R14: One rotating dolly.
Functionality
  • Machine skates will pull, roll, and steer loads easily at max load capacity. Robust for frequent use in the field.
  • Automatic motor locks engage to prevent rolling away from standstill.
  • Runs for hours under full load & recharges quickly.
Control
  • Wireless remote controls allow for safe operation from a distance (or optional cable-remote).
  • Full control forward/reverse/stop, speed, left/right, spin 360 degrees.
  • Speed can be increased and decreased seamlessly, without jerking.
Maintenance
  • Battery health monitoring. Overload protection.
  • Problem reporting display. External laptop connection port for diagnostics.
  • Repair & support available.
Manufacturer: JUNG - Made in Germany

Wheel & Skate Size


5.5" Wheels   |   7.1" Skate Height
Non-Floor Damaging     For Rough Floors
Uses JUWAthan+ and JUWAmid wheels: For balanced traction and easy turning characteristics at max floor protection.

Wheel Size: Fewer large diameter wheels – compared to using greater number of small wheels - maintains easy rolling of larger loads. Wheel size 3.3" and 3.5" for level floor and 5.5" and larger additionally for asphalt use.

Wheel series: G (5.5" x 2.3" x 1.4" ID)

Specifications

Battery (V)
Min 44.8 - Max 57.6
Battery Amp Hours
50Ah
Battery Life Cycle
3000 or more
Battery Type
LiFePO4
Capacity (Lbs)
60,000
Charge Time (Hrs)
4-5
Dimension - Height (In)
7.1
Floor Condition
For Level Floors
Load Capacity (Tons)
30
Manufacturer
JUNG
Max Speed At Full Load (Ft/Min)
21 ft / minute
Motor
2x 48V each powered skate
MPN
JLA-e 15/30 G and JKB 14 G
Pull Capacity (Tons)
30
Run Time (Hrs)
4 to 5 hrs
Set Capacity (Tons)
30
Use in environment
Indoor and Outdoor
Weight (Lbs) - Shipping weight
1866
Weight of Set (Lbs) - Product weight
1596
Wheel Diameter (In)
5.5
Wheels (for Propulsion)
4 each powered skate
Wheels (Total Number)
16 (EP15) | 12 (R14)

Functionality





Safety & Security




Battery Technology




Repair & Support

Product Guides & Documents

Printable Details Printable Details
Engineering Drawings Engineering Drawings
Pressure on Thin Floors Pressure on Thin Floors
Add-On Options Add-On Options
MSDS for Battery MSDS for Battery
Transport Safety Cert Transport Safety Cert
Non-flammable Cert Non-flammable Cert
Quick Start Guide Quick Start Guide
Wheel Details
Combination of Wheel Materials
For Optimum Performance

The powered machines skates have a combination of two different wheel types for optimum performance. The mustard colored JUWAthan wheels have a slightly larger diameter than the black JUWAmid wheels. The weight of the load will compress the elastic mustard colored wheels and provide the traction with the floor. The black material is tough and hard and will not compress. It carries the load weight. The black material is also slick to touch so it allows the skate to turn easily.





1. JUWAthan+ Wheels

Main Characteristics
  • Patented material baked in oven onto core for toughness & elastic performance characteristics:
  • Overcomes obstacles easily (wheels mold around obstacles and keep rolling)
  • No stop, up & over action required like with other wheels
  • Spreads out under weight for large footprint resulting in low floor pressure, low break out & low rolling resistance, low push-pull force and low manpower requirement
  • Shock absorbent for impact loading
  • Non-floor damaging, non-marking
  • Reliable under toughest working conditions

Construction
  • CORE: Aluminum core on skates up to 12 tons (for lightweight handling) *Steel core on skates 20 tons and over
  • BEARINGS: Advanced high-strength precision ball bearings, ball bearings are sealed from both sides to protect against contamination of sand & dirt
  • OUTSIDE MATERIAL: JUWAthan+®, bonded into deep grooves in steel/aluminum core against sideways pressures
  • HARDENING: Wheels baked in oven for extended period of time

Chemical Resistability
  • Resistant: Acetylene, Beer, Butane, Carbonic Acid, Citrus Oil, Ferrous Sulphate, Gasoline, Glycerol, Ink, Methyl Alcohol, Mineral Oil, Nickel Sulphate, Oil, Ozone, Propane, Soda, Sodium Nitrate 10%, Vegetable Oil
  • Not Resistant: Acetaldehyde 40%, Acetone, Ammonia 20%, Bromine, Carbon Monoxide Hot, Chlorine, Hydraulic Fluid, Iodine, Water over 170°F
  • Conditional Resistant: Glycol, Saltwater, Turpentine, Waste water.

2. JUWAmid Wheels

Main Characteristics
  • Specially formulated material for optimal maneuverability:
  • Slick-to-touch material for spinning in place, with reduced "rubber" effect on floors for easy change of direction.
  • Precise turning without additional need for aligning by hand.
  • Low man-handling force required to push-pull in confined spaces
  • Non-floor damaging, non-marking
  • Reliable under toughest working conditions

Construction
  • OUTSIDE MATERIAL: JUWAmid
  • BEARINGS: Advanced high-strength precision ball bearings, ball bearings are sealed from both sides to protect against contamination of sand & dirt

Chemical Resistability
  • Resistant: Acetone, Acetylene, Ammonia 20%, Beer, Butane, Carbon Monoxide Hot, Citric Acid 10%, Citrus Oil, Gasoline, Glycerol, Hydraulic Fluid, Ink, Mineral Oil, Oil, Propane, Saltwater, Soda, Sodium Nitrate 10%, Turpentine, Vaseline, Vegetable Oil, Waste Water, Water at 180°F, Wax at 180°F.
  • Not Resistant: Acetaldehyde 40%, Acetone, Ammonia 20%, Bromine, Carbon Monoxide Hot, Chlorine, Hydraulic Fluid, Iodine, Water over 170°F
  • Conditional Resistant: Glycol, Saltwater, Turpentine, Waste water.


Additional Information for Both Wheel Types:

JUNG developed its patented wheel materials over decades to engineer the most advance performance characteristics.
Warranty


All JUNG products are covered under a manufacturer's warranty:

5 Years on all products, except

1 Year on all electrical and pneumatic products and pumps

Coverage

The manufacturer warrants that the products are free from material or workmanship defects, provided they are subject to normal and intended use. The manufacturer may replace the product or may provide replacement parts, in accordance with the provisions of this warranty policy, any of its products during the duration of the warranty, if it is determined that the product has a material or manufacturer defect.

Limitations

The warranty does NOT cover damage resulting from improper use of the equipment, such as overloading, accidents, abuse, or misuse, modification, negligence after purchase, ordinary wear and tear, and/or failure to follow the product’s operating instructions or safety regulations.

Initiating a Claim

In the event of a defect in North America or South America, notify Toolwell of the circumstances in order to obtain warranty instructions. Depending on the nature of the defect, Toolwell will offer at its discretion one of two options:

    1. Replace the defective product. All defective dollies, skates, and jacks must be returned to Toolwell.
    2. Replace the defective part. The defective part may be discarded.

Warranty Period

This warranty is valid for five (5) years on all JUNG products from the date of original purchase with the following exception: The warranty is valid for one (1) year from date of purchase on all electric and pneumatic powered products, and pumps.



DISCLAIMER

There are no warranties made by the manufacturer or the manufacturer's agent, expressed or implied, except as specifically set forth above.

Any JUNG product is purchased by buyer “as is” and “with all faults” and JUNG or the manufacturer's agent makes no warranty of merchantability or fitness for any particular purpose.

Under no circumstances shall JUNG or the manufacturer's agent be liable to buyer or any other person for any special, incidental or consequential damages, including, without limitation, damages based upon lost good will, lost sales or profits, work stoppage, delay, product failure, impairment of goods or otherwise and whether arising out of breach of warranty, breach of contract, negligence or otherwise, and in any case, JUNG’s (or the manufacturer's agent’s) liability for any and all losses and damages sustained by buyer and others, arising out of or by reason of this contract shall not exceed the original purchase price of the products upon which liability is founded.

JUNG or the manufacturer's agent is NOT responsible for ANY loss, liability, injury or damage which results from use of the products. The term “use” refers to any and all operation of the products, from misuse and abuse of the purchased tools to operation of faulty or defective products to proper use which results in a mistake or accident. Customer purchases and uses these products at his own risk.

The manufacturer and the manufacturer's agent neither assumes nor authorizes any other person to assume for it, any liability in connection with the moving equipment or sale thereof, other than expressed herein.

JUNG and Toolwell reserve the right to amend or adapt these warranty conditions with implications for the future at its discretion at any time.
Capacity & Safety Factor
Our advertised load capacity is rated well below the breaking point so the dollies and skates are built to safely operate at full capacity.



Capacity can mean different things so please find below an explanation for your understanding:

  1. Breaking point: At which point will the skates break?
  2. How close to the breaking point is the capacity advertised?
  3. Failure to operate: At which point will the wheels stop rolling & turning?
Safe Working Load Capacity: Our advertised load capacity refers to the maximum amount of weight our dollies and skates are designed to safely carry while maintaining easy rolling and turning. The breaking point and the failure-to-operate point are well above this capacity allowing the dollies and skates to be operated at the maximum rated load weight. NEVER EXCEED this Safe Working Load Capacity.

Safety Capacity: The dollies and skates possess a safety capacity above the advertised load capacity to protect against limited temporary overloading due to impact loading or unexpected shift in weight. Operating the dollies and skates above the rated capacity and within the safety capacity means more effort is needed to roll and the user will notice an increase in rolling resistance. If the safety capacity is maxed out, the wheels will stop rolling and start dragging behind and turning becomes impossible.

Dynamic Load Capacity: The load limit above which the dollies and skates will permanently deform and fail (breaking point) in motion is rated above the Safety Capacity.

Static Load Capacity: The load limit above which the dollies and skates will permanently deform and fail (breaking point) at standstill is rated above the Dynamic Load Capacity.



Disclaimer of warranties: While the manufacturer strives to achieve zero defects of the goods described, seller makes no warranty of fitness for any particular purpose and does not guarantee the products specified capabilities. For all applicable terms and conditions see Our Terms & Conditions
Quality Standard




40+ Years of Proven Quality - Made in Germany since 1972

You've probably heard this statement before: "We promise the highest quality!"

What exactly does this promise mean?

In our case, it means that our products have been designed, developed, made, and relentlessly improved in Germany for more than 50 years.

Technology

A professional in-house engineering team constantly works to improve our products. We aim to enhance the ease of rolling, durability, and ease of use. This includes making tiny adjustments that may only refine the rolling or lifting friction by 0.1 percent, but these specific modifications accumulate over 50 years and have lead to vastly superior performing products!

We often work on maximizing features that cannot be seen, like heat dissipation of temperature increase during rolling under huge turning forces. All aspects of our dollies, skates, and jacks are analyzed and re-engineered to make the products more efficient.

Testing

In our in-house testing ground, we test materials, parts, and product prototypes. Every new product is then evaluated by professional machinery movers in order to detect weak points in the prototypes or parts. Any discovered deficits are then fed back to engineering.

Manufacturing

Many companies move their production overseas, but JUNG carries on to produce products and components in Germany, and also invests in its manufacturing plant in Germany . We employ robots in the manufacturing to guarantee consistent quality among every single product. Even though other companies nowadays increasingly advertise 'engineered in Germany' - which in fact means built in another place, our products continue to be Made in Germany.

Precision

This means that every product and component is manufactured to precise dimensions and precise shape. It furthermore means that every product and component is precisely the same. When a product or component is exposed to the extraordinary forces of multiple tons of weight, any variance from the exact sizes could lead to product breakdowns.

Case in point: If the diameter between balls in bearings differs even a bit, the forces will be unevenly distributed, which will sooner or later lead to failure. Another example: If the structure is warped even by 0.1 %, then under load, it twists, which may in the long run lead to cracks.

This accuracy can only be attained through state-of-the-art precision manufacturing processes. Low-cost parts can lead to breakdowns, therefore we only employ high-quality components, and each product is exactly the same, and produced to exactly the same production standard.

Conformance to Safety Principles

Our products are put to the test to meet the most recent U.S. safety standard ASME B30.1. This standard specifies the load bearing valuation and safety capacity demanded by OSHA requirements. JUNG skates are really the only load moving skates in the United States that comply with these specifications.

All jacks are tested to comply with ANSI B30.1. All skates can just be tested to capacities of 16 tons. Larger sized dollies and skates cannot be tested, but are made to comply with the same or higher safety standards.

Because of its manufacturing process we can guarantee that each product is identical (and does not vary because it was cut, drilled, and welded by hand). Our products may well be issued with certificates of compliance or certificates of conformity (COC).

Traceability by Serial Numbers

Every product is marked with a serial number. This identifier is associated with the item's material, components, and manufacturing batches. Every part failure can be tracked back to the production batch to determine the underlying cause.

This quality assurance program guarantees that deficiencies are wiped out over the years, so that the products get ever closer to absolutely no defects. No other machine skate and toe jack producer has implemented such an advanced quality assurance program.

ISO

The factory's total quality management system is certified to ISO 9001, which ascertains that customers are provided with continuously improved quality items, and that all products achieve statutory and regulatory prerequisites.

More Expertise Provided to the Customer

Over 40 years of working experience have provided us with a vast technical knowledge base in the field of heavy load moving. We strive to transfer this skills onto our customers, and aim to make this knowledge accessible on our internet site and over the phone.

Customers can call us and discuss their problems with our technical engineers. We have confidence in supporting the potential customer before the purchase, providing support to the client during the operational phase, and providing assistance 10 years after the purchase date.

Our Goal is to Help You in Any Possible Way!

Combining all aspects, our products and customer service are supreme in quality over any other machine skate or toe jack on the market today.
Reliability

Our products are used to lift and transport nuclear reactors and nuclear waste. To a small business this reliability and dependability is equally important as a product failure can be equally devastating. We supply the same product quality to small, medium and large organizations.

The Results of Poor Quality

The Results of Poor Quality Similar products sacrifice quality for cost. Copied parts are welded together into a product without any understanding, engineering, R&D and testing capabilities. Unreliable economical variety materials are used building the products, putting your equipment at risk for a break-down. The cheaper construction may result in frames bending from impact loading or axles snapping under load. Customers may constantly need to replace parts to keep the products in operation. Look-alike products may be advertised at higher capacities by eliminating or reducing safety capacities. Knock-offs claim higher capacity while exerting so much weight onto the same footprint that the wheels will drag behind instead of actually rolling.

Our Definition of Load Capacity

Our definition of Load Capacity goes further than just working safely below the break point: The more weight is exerted onto the skates's footprint, the higher the break-out & rolling resistance becomes until too much weight causes the wheels to drag behind, making changing directions impossible. The maximum capacity at which a wheel still turns is limited by the pressure exerted onto the footprint (aside from the component strength). That means a 2 ton rated wheel may stop turning at 1 ton of weight. Be assured that you maintain “easy rolling” and “easy steering” at maximum capacity with our dollies and skates.

Honesty & Trustworthiness

We aim to completely educate our customers about the advantages but also about the disadvantages, considerations and limitations of our products. We do not overpromise.

Professional Engineering

All products are designed by JUNG’s full time engineering team. Besides continuous improvements to functionality and strength, the products are optimized beyond what the customer expects. For example: The dollies and skates are designed for heat dissipation to counter possible weakening over time as high temperatures build up from the enormous friction forces. Internal technology is employed to protect against impact loading and design considerations are given to chemical and environmental resistability. German engineering means test and design for every detail.

State of the Art Manufacturing and Materials

The factory employs state of the art robots in the manufacturing process to assure that every product meets the same quality standards. All products are manufactured in house in Germany. Manufacturing process ISO 9001 certified.We don’t use standard commercial readily available materials. Our materials are specifically formulated, tested and engineered in JUNG’s research and development. Materials are engineered and custom produced for:High Strength Ease of Use Durability under the greatest strain Each component, steel frame and aluminum composition is built with state of the art technology.

Quality Control

All products are function tested after manufactured to guarantee zero defects. Our quality control department tracks all products and components by stamped-in serial numbers to trace any problem to assure zero re-occurrence. A certified quality management program assures a consistent level of quality.

Warranty

Each purchase is a one-time investment in superior quality; each product comes with a five year warranty, and is reliable even after a decade of use within its rated capacity.











































Look-alikes



JUNG vs. Look-Alikes

Why Choose JUNG? What Makes These Skates Unique?

JUNG products have been copied many times. Those may look the same but certainly will not perform the same.

Copies may drag over the surface instead of rolling. It may be close to impossible to change direction unless the cargo is lifted. It may damage the floor. It may be unmovable unless a towing vehicle drags the load rather than rolling it. The skate may fail terribly. It may need frequent repairing. The wheels need to be taken out and replaced very often.

JUNG has obtained the technological know-how to develop, test, and manufacture machine skates in Germany during the last 50+ years, with one single goal in mind: To build a machine skate that truly works ... and works ... and works.

Our skates will roll with ease, turn with ease, will leave floors intact, perform well under the toughest operating conditions, and have a long life span. They make the job much easier, much faster, and much more reliable for a very long time.

As the original and finest skates in the industry, our products have been cloned into look-alikes. While the copied products may look the same - and can certainly move a load from place A to B - how easily and how reliably separates the good products from the bad.

When compared with all the look-alikes, JUNG skates are the only ones designed, engineered, tested, certified, and permanently improved from the ground up - instead of being just imitated. They differentiate themselves from the look-alikes:

    • By having a much higher breaking point
    • Higher safety capacity (often times non-existing on look-alikes)
    • Conforming to safety regulation (as compared to not conforming)
    • Much better rolling and turning capabilities
    • Better engineering employed under the hood
    • Higher reliability and durability
    • Longer life span
    • Better quality parts and materials
    • Making use of components constructed for the exact purpose
    • Manufactured in an advanced production line
    • Built by robots to guarantee consistent premium quality
    • Incredibly high value as opposed to cost
    • And with professional support and engineering assistance after the purchase

JUNG products deliver excellence Made in Germany.









Certificate of Conformity

Certifications for nuclear industry

All products are function tested by JUNG to verify rated load capacity and assure zero defects prior to delivery.

It is a standard requirement to offer a Certificate of Conformity to every customer in the nuclear industry. However, we offer this same certification to commercial customers for a surcharge.

The certificate below will be issued on request.

Sample: Certificate of Conformity

Product Description: _________________      Manufacturer: JUNG       Model Number: ______________      Serial Number: ______________

Rated load bearing capacity: _______ kg/lbs

Toolwell, Inc., as the responsible certifying agent for the manufacturer, hereby certifies that the product described above conforms to the following:

A sample of the product has been tested and has exceeded the specified load bearing capacity. The Certificate issued for the serial-numbered product is based on an evaluation of said product sample.  The product was produced in accordance with standard manufacturing processes in effect at the time of manufacture of the sample. Product specifications and documentation are at user’s disposal.

If an ANSI Certificate is attached hereto, the model meets or exceeds safety standards ANSI/ASME B30.1-2009. Otherwise, the item has been manufactured to meet the same standards but an ANSI/ASME certificate is not available.

ANSI Certificate (if applicable):

• “JHS” series Toe Jacks - Certificate-Number: 201006
• “G-plus” series toe jacks - Certificate-Number: 201001
• “K” series transport trolleys - Certificate-Number: 201002
• “S” series transport trolleys - Certificate-Number: 201019
• “JKB” series rotating dollies - Certificate-Number: 201007.

User is responsible for determining whether the product is fit for a particular purpose and suitable for user’s application. Toolwell will not be liable for any loss or damage arising from the above-mentioned product, whether direct, indirect, special, incidental or consequential, regardless of the legal theory asserted, including warranty, contract, negligence or strict liability.

Signature: ____________________________

Name: ____________________________

Manufacturer Authorized Agent: Toolwell, Inc.
National Defense Form 889
NDAA Section 889 Compliance

Section 889(a)(1)(B) of the 2019 National Defense Authorization Act (NDAA) prohibits purchasing of products from entities that use certain covered telecommunications equipment or services as a substantial or essential component of any system, or as critical technology as part of any system.

Toolwell certified that all our products are compliant with NDAA Section 889.

A certification is available on request. Please contact our office.
Repair & Support
Toolwell's Commitment to EV Skate Support
EV Skates are outfitted with a Health Monitoring System:
    • Constantly monitors battery health, motor function, and internal temperatures
    • Enables early detection of potential issues
Electrical Service Support from Toolwell:
    • We support electronic diagnostics and repair if a problem occurs
Priority Repairs and Quick Turnaround:
    • Large stock of frequently needed skate parts
    • Fast turnaround time on repairs
Diagnostics & Repair Services

If an electronic issue arises with your battery-powered machine skate, please contact us. A technician will try to understand the problem and decide the quickest way to resolve your issue.

Electrical Support includes:
  • Troubleshooting and guided repairs via phone or video conference.
  • In-house diagnostics and repairs at Toolwell’s facility.
  • Full array of replacement parts available for immediate shipping.
Speed:
Toolwell stocks a large supply of frequently needed parts including electronic components for all machine skates for quick turnaround on repairs. Rest assured that your repair has priority, and we will work as quickly as possible to return the repaired unit as soon as possible.

Parts are Available for Self-Repair

Mechanical Maintenance:
Mechanical components such as wheels, turntables and bearings, are easily changed by the owner.

Things we do NOT support:
We cannot fix products with body damage. Serious body damage of machine skates can affect the overall integrity of the skate, in many cases replacement should be considered.
Battery Technology
Battery Technology & Safety



Lithium-Ion vs Lithium-Iron

Traditional Lithium-Ion batteries are still used today in most electric cars and electric bicycles for their range. These standard lithium-ion batteries, however, are prone to overheating and consequently are at risk of catching fire or exploding.

JUNG EV skates employ Lithium-Iron batteries instead, with a chemical composition of LiFePo4.

These types of batteries have a much shorter range but provide higher safety.

Outfitted with Battery Health Monitoring System

Any battery or any energy source can still present a risk as the batteries turn out up to 58.4V at 60Ah. Consequently, JUNG batteries are outfitted with sensors feeding metrics to an integrated battery health monitoring system. The system monitors for any problems and shuts down the system if any such problem occurs.

Independent Safety Testing of Jung Batteries

JUNG batteries have been tested by an independent lab. During the tests, the batteries were exposed to:

    • Pressure in a vacuum chamber
    • Hot and freezing temperatures in a climate chamber
    • Vibration on a vibration exciter
    • Shock on a vibration exciter
    • Short circuit conditions
    • Overloading conditions with twice the current
    • Internal and External Damage
The batteries passed all tests. There was no leakage, no venting, no disassembly, no rupture and no fire during the test. A complete testing report is available by request.

Photos from testing procedures:





State of Evolution






Ours vs. Theirs






Trusted






Cost of Ownership


Accessories and Customizations

Image For Program remote frequency to allow simultaneous operation of multiple skates.
Order Number: EPmulti
Program remote frequency to allow simultaneous operation of multiple skates.
$1.00
Availability: Usually Ships Within Ships with Skate
Image For Convert wireless remote into cable remote. Cable for EP15 and EP25. Length: 45 feet.
Order Number: EPcable 45
Convert wireless remote into cable remote. Cable for EP15 and EP25. Length: 45 feet.
$2,920.00
Availability: Usually Ships Within 6 - 8 Weeks
Image For Convert wireless remote into cable remote. Cable for EP15 and EP25. Length: 195 feet.
Order Number: EPcable 195
Convert wireless remote into cable remote. Cable for EP15 and EP25. Length: 195 feet.
$3,981.00
Availability: Usually Ships Within 6 - 8 Weeks
Image For Operate battery skate with 110V Powerpack instead of battery. Cord: 30ft.
Order Number: EPpPack
Operate battery skate with 110V Powerpack instead of battery. Cord: 30ft.
$12,190.00
Availability: Usually Ships Within Ships with Skate
Image For Additional/replacement BATTERY for EP5, EP15 and EP25.
Order Number: EPbattery
Additional/replacement BATTERY for EP5, EP15 and EP25.
$20,497.00
Availability: Usually Ships Within Same Day
Image For STORAGE BOX for JUNG battery-powered skate. Fits models EP5 (1st Gen) and EP15 (1st & 2nd Gen)
Order Number: EPbox15
STORAGE BOX for JUNG battery-powered skate. Fits models EP5 (1st Gen) and EP15 (1st & 2nd Gen)
$8,111.00
Availability: Usually Ships Within 6 - 8 Weeks

Product In Use

Customer supplied - Pictures
Battery-powered Machine Skates - See in Use

The JUNG Battery-Powered Machine Skate can move heavy duty loads via a wireless controller. These battery-powered machine skates allow maximum safety for the user allowing control at a safe distance. The joysticks on the remote control are pressure sensitive allowing steering and speed changes precise and seamless.



Image above: Battery powered machine skate is controlled with remote (picture left), Close up of battery powered machine skate under load (picture top right), Remote control is clipped onto the belt (Picture bottom right)

The battery-powered machine skate can handle all types of loads. Operation is however limited to level smooth floors.



Image above: The battery powered machine skate carries a massive load (picture left), The robot machine skate is turned sideways to rotate a load (picture top right), Close up of battery powered skate under a cement block (Picture bottom right).
Products in use - Video

Also-Bought Products

COMPACT Toe Jacks
Up To 20 Tons
CONFINED-SPACE Toe Jack Sets
Sets Up To 20 Tons
PUMP-OPERATED Toe Jack Sets
Sets Up To 60 Tons
Air-Powered Machine Skates
Sets Up To 30 Tons

Description

JUNG Battery-Powered Machine Skates

Rolls where other fail: Over the last 10+ years, the technology behind JUNG's battery-powered skates has undergone a radical evolution, resulting in today's reliable and mature machine skate system.

360 Maneuverability

With one powered skate under the front of the load, and one under the rear, load can be maneuvered 360 degrees. Requires two operators, one to control each remote control. The rotating dolly will follow the powered machine skates in any direction.

Key Advantages:

  • Battery-powered machine skates pull, transport, and maneuver loads easily at full load capacity. Skates possess safety capacity (load bearing and pulling capacity) above rated capacity.
  • Robot Skates run continuously under full load for hours.
  • The battery recharges quickly.
  • The speed can be increased and decreased seamlessly, without jerking, from zero to full speed under full load.
  • The wireless remote control allows for safe operation from a distance (or operate with optional cable-remote).
  • Full control: Forward/reverse/stop, speed, left/right, spin 360 degrees.
  • Motors lock automatically at standstill to prevent skate from rolling away.
  • Made in Germany. Manufactured by JUNG.
  • US based Sales and Lifetime Technical Support

The Difference:

For over 50+ years JUNG skates, dollies and jacks have been incrementally improved and fine-tuned. Many companies have copied the same look but have been unsuccessful trying to copy the same performance and reliability.

JUNG battery-powered machine skates are Made in Germany and offer the highest reliability, ease of use and functionality, employing superior technology, engineering, and manufacturing quality. Our robotic equipment skates provide stable dependable support for load transport, roll & turn easily, and move loads safely even at the maximum rated capacity. These machinery skates work simply and reliably where others fail.

Toolwell provides parts and service to keep the machine skates running even after many years of wear and tear (see more below).

Uses:

  • Battery powered machine skates are ideal for moving machines, equipment, and material from point A to point B during installation, maintenance, and relocation without the need for a towing vehicle.
  • Use for transporting loads on smooth concrete, asphalt, or steel plates.

Features:

  • When used in a standard configuration with a steerable front and straight-line rear skate, the machine skates are freely steerable with the same maneuverability as a car: The front steers while the rear follows.
  • Skates can also drive backwards, using the powered skate on the rear of the load to push from behind.
  • 3-point load moving systems are safer to use than traditional 4-point systems. Skates will not slip out under tugging and pushing forces.

Manufacturer:

  • Manufactured by JUNG
  • Made in Germany
  • For 50+ years

Wheels:

  • Patented JUWAthan wheels (yellow) provide traction for propulsion while JUWAmid wheels (black) add additional load bearing capacity. This combination of wheel types provides the optimum ease of rolling, turning and break-out performance form standstill.
  • Wheels will not damage floors.
  • Fewer large diameter wheels - compared to using a greater number of small wheels - maintains functionality with larger loads.
  • Wheel material has extremely long life and extremely low failure rating.
  • Sealed ball bearings protect against contamination with dirt for both inside and outside use.
  • Reliable under toughest working conditions.

Skate Sizes:

  • Wheel size and overall skate height increases with increased load bearing capacity.
  • This assures consistently low rolling resistance and reduces the risk of point-loading wheels.
  • Larger wheels can bridge larger obstacles and can handle rougher floor conditions.

Battery

  • Lithium-Ion 48 VDC
  • With 110V charger. Battery charges to 100% in 3 - 6 hours depending on the model.
  • ALERT: All lithium ion batteries must be charged periodically when not in use for extended periods (~every 3-4 months). If battery is left to drain below the minimum level, battery cannot be recharged and requires costly replacement.

Construction:

  • Machine skates are built using 4-way steel bending technology with frames that twist under excessive forces to prevent fractures, while maintaining functionality.
  • Materials, including the steel and the wheel materials, are specifically tested and manufactured to gain the highest performance from these skates. We do not use untested garden-variety materials.
  • Factory is ISO certified and uses state-of-the-art production tools including welding robots to assure each product meets consistent quality.
  • Each skate is outfitted with an anti-slip load pad.
Included:
  • The battery-powered skate ("EP-model) comes with the robot skate, the hook-on battery pack (silver box), the remote control, one charger for the battery pack and one charger for the remote control.
  • One rotating dolly.

Radio Frequencies (special considerations for security sensitive sites)

  • The remote control communicates via radio frequency. If radio frequency is undesirable, please consider the cable-remote option which disables the transmission.

Quality Level

  • Made in Germany
  • All battery-powered machine skates have significant safety capacity above the rated load bearing capacity so all products can be used at the maximum rated capacity.
  • All new products undergo long testing periods in the lab and in the field before release to public.
  • All skates are tagged with a serial number and any defects are traced.
  • All electrical and air-powered products come with a 1-Year manufacturer’s warranty.

Parts & Serviceability:

  • Toolwell provides lifetime technical and parts support.
  • The battery-powered machine skates contain mechanical, electrical, software and battery components. All components are modular, including the circuit boards, for ease of replacement. Mechanical components such as the wheels can be replaced by the end user. Video instructions are available. Toolwell offers repair service on any electrical and software components. The battery, remote and chargers can simply be replaced. This provides the customer with piece of mind when considering the long-term investment costs.
  • Toolwell provides support beyond just sales and maintenance. We frequently advise customers on load moving applications many years after products have been purchased.
  • Engineering level support available.
Email This Page
