Machine Rollers – Boerkey – Nylon Wheels – Kit - w Handles and Case – Set Capacity 40 tons
Model KL#3
Availability: Usually Ships Within Same Day
Purchase Orders Accepted with approved credit
Call Us for Emailed Quotes, Consultations, Orders, or POs
Call 1-800-786-6112
International Shipping Options
See Options in Cart
Set Capacity
40 tons
Height w Top
5.5 inches
Includes

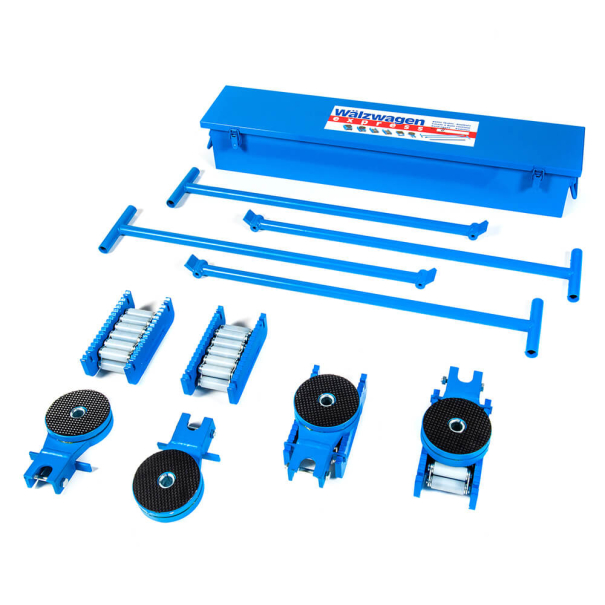

4 rollers, 4 swivel tops, 4 handles and 1 case
Manufacturing
Original Inventor and Manufacturer of Machine Rollers
Börkey - Since 1945
Toolwell: Exclusive North American distributor for Boerkey
- US-based Sales
- Stocked and Shipped from the US
- Engineering & Lifetime Technical Support
Quick Info
For concrete floors
Applications:
- Machinery moving
- Hours under continuous load bearing
- Short distance travel, Daily use
Wheels & Suitable Floors:
- Nylon wheels on steel chain
- For smooth level concrete
Manufacturer: Börkey ("Boerkey"), Made in Germany
Rolling resistance:
- Rolling resistance varies greatly with floor type and condition.
Maneuverability:
- Without swivel top: Straight-line
- With swivel top: Omni-directional, Turnable at standstill
Portability:
- Compact, ideal for mobile toolkit.
Capacity:
- 30-40% Lower capacity than equivalent machine rollers with steel wheels
Roller Selection Criteria
Specifications
Capacity (kN)
400
Capacity Each Roller (Tons)
10
Length (In)
10.6
Manufacturer
Boerkey
Max Speed At Full Load (Ft/Min)
16
MPN
13N60MT
Roller Height With Top (In)
5.5
Roller Height Without Top (In)
3.6
Set Capacity (Tons)
40
Total Number of Wheels
52
Weight (Lbs) - Product weight
180
Weight (Lbs) - Shipping weight
238
Wheel Diameter (In)
1.2
Wheels under stress
16
Width (In)
5.1
Börkey Color Coding
Identifying Colors:
Blue: Standard Machine Rollers (standard on this US model).
Maroon: Machine Rollers with Hardened Center Plate for months+ of load holding, on models KB, KA, KS, KZ and KM only.
Also-Bought Products
Product In Use
Customer photos using Standard Duty Machine Rollers
These machine rollers are used for short-term load holding and moving in applications such as machinery moving, crane erecting and material handling.
Customer photos using Heavy Duty Machine Rollers
These machine rollers are used for medium duration (several months) of load holding and moving in applications such as scaffolding, general construction, and machine fabrication.
Customer photos using Super & Ultra Duty Machine Rollers
These machine rollers are used for long-term or permanent load holding and moving in applications such as bridge construction, offshore structure & equipment rolling, bunker doors and gantry crane operation.
Product Guides & Documents
Which Machine Roller for which application?
Use Standard Duty Rollers for short term projects such as Machinery Moving:
Use Heavy Duty Rollers for medium-term projects such as steel erecting, general construction or machine fabrication:
Use Super Duty Rollers for permanantly loaded or long-term loaded loads for projects such as bridge construction, structure repositioning, machine and equipment repositioning, or in marine and offshore applications.
Use Ultra Duty Rollers for loads that roll frequently such as gantry cranes, rotating machinery or container hoisting.
All machine rollers look the same. What are the differences?
A Börkey Machine Roller is available in many variations as every Börkey Roller can be built to best match a specific application. Starting with a base roller construction, each component can be upgraded to improve durability, reliability and functionality. The highest possible quality may certainly be required when moving a nuclear reactor, but not every application calls for the most expensive machine roller configuration as each component upgrade increases the cost.
It is important to remember that the roller selection should always exceed the application requirements for safety and usability, however, consider selecting a cost-effective machine roller configuration that makes economic sense in relation to the application. Hence Börkey has created different levels of quality to suit different application requirements.
The graphic below provides a clear understanding of each quality aspect of a roller and will show which features – including component upgrades and construction methods – are included on which roller models.
Generic Competitors (Lower Quality)
Börkey Rollers (Higher Quality)
Models by Construction Type
Standard Duty
Heavy Duty
Super Duty
Ultra Duty
Rolling Resistance of Machine Rollers
Roller Size affect on Rolling Resistance
Rollers with fewer, larger diameter wheels will roll more easily than those with more, but smaller wheels.
Wheel Sizes
Wheel size increases with roller size. Larger diameter wheels have lower rolling resistance and will consequantly roll more easily.
Weather & Corrosion Resistance
The steel components of the rollers will naturally develop surface rust in weather. Minor surface rust does not decrease the performance.
More details:
Standard, included. Short-term outdoor use
Frame zinc-phosphate coated, nylon wheels, roller chain (load wheels, axles and links) galvanized.
Considerations When Choosing Roller Capacity
Machine Rollers should ideally be used on solid surfaces such as steel, so the weight is equally divided across each load wheel.
When operating 4 machine rollers on uneven surfaces such as concrete, select a roller with double the mathematical roller capacity to safeguard against overloading due to the load rocking and shifting. If operating more than 4 machine rollers, carefully select suitable roller capacity to prevent overloading in case load rocks on uneven surfaces and shifts weight.
SOLID/SMOOTH SURFACE or TRACK
Example: An equally distributed load of 40 tons, translates into 20 tons to be supported on each side
Capacity needed: 10 tons each machine roller
IMPERFECT/TEXTURED SURFACE
If the load rocks on an uneven surface, one roller loses contact with the load and the weight shifts to the closest roller
Capacity needed is doubled: 20 tons each machine roller
Additional Considerations
Wheels can be point-loaded when travelling over recesses and uneven surfaces ... or when hitting an obstacle
Side forces such as wind may cause uneven weight distribution on rollers resulting in possible side/ overloading
Consider selecting higher capacity machine rollers to offset the hazards of point-loads, uneven weight distribution, and side forces.
How is “Load Capacity” really rated ?
Börkey machine rollers can be used at the full rated capacity in the field.
The rollers have additional safety capacity.
The rollers have additional safety capacity.
Individual machine roller capacities are calculated based on moving the load across a solid level & smooth surface so that all load wheels are touching the floor and distributing the weight equally.
All Börkey products are covered under a manufacturer's warranty:
1 Year on all Börkey products
Coverage
The manufacturer warrants that the products are free from material or workmanship defects, provided they are subject to normal and intended use. The manufacturer may replace the product or may provide replacement parts, in accordance with the provisions of this warranty policy, any of its products during the duration of the warranty, if it is determined that the product has a material or manufacturer defect.
Limitations
The warranty does NOT cover damage resulting from improper use of the equipment, such as overloading, accidents, abuse, or misuse, modification, negligence after purchase, ordinary wear and tear, and/or failure to follow the product’s operating instructions or safety regulations.
Initiating a Claim
In the event of a defect in North America or South America, notify Toolwell of the circumstances in order to obtain warranty instructions. Depending on the nature of the defect, Toolwell will offer at its discretion one of two options:
- Replace the defective product. All defective dollies, skates, and jacks must be returned to Toolwell.
- Replace the defective part. The defective part may be discarded.
Warranty Period
This warranty lasts for one (1) year on all Börkey products from the date of original purchase.
DISCLAIMER
There are no warranties made by the manufacturer or the manufacturer's agent, expressed or implied, except as specifically set forth above.
Any Börkey product is purchased by buyer “as is” and “with all faults” and Börkey or the manufacturer's agent makes no warranty of merchantability or fitness for any particular purpose.
Under no circumstances shall Börkey or the manufacturer's agent be liable to buyer or any other person for any special, incidental or consequential damages, including, without limitation, damages based upon lost good will, lost sales or profits, work stoppage, delay, product failure, impairment of goods or otherwise and whether arising out of breach of warranty, breach of contract, negligence or otherwise, and in any case, Börkey’s (or the manufacturer's agent’s) liability for any and all losses and damages sustained by buyer and others, arising out of or by reason of this contract shall not exceed the original purchase price of the products upon which liability is founded.
Börkey or the manufacturer's agent is NOT responsible for ANY loss, liability, injury or damage which results from use of the products. The term “use” refers to any and all operation of the products, from misuse and abuse of the purchased tools to operation of faulty or defective products to proper use which results in a mistake or accident. Customer purchases and uses these products at his own risk.
The manufacturer and the manufacturer's agent neither assumes nor authorizes any other person to assume for it, any liability in connection with the moving equipment or sale thereof, other than expressed herein.
Börkey and Toolwell reserve the right to amend or adapt these warranty conditions with implications for the future at its discretion at any time.
In 1945 Walter Börkey invented the world's first modern machine roller skate.
Mass production of the machine rollers started in in 1951 in Hagen, Germany and over the last 70+ years Börkey imroved and expanded its product line using the latest design and manufacturing technologies.
Today Börkey is owned and operated by the 4th Generation of the Börkey family and the products are still engineered and manufactured in Germany.
With machine rollers offered and built in nearly every size and capacity, Börkey has solutions for a wide variety of industries ranging from machine transports and maintenance to oil & mining, shipbuilding, to aerospace and nuclear power.
Toolwell - America’s leading expert in load moving equipment is Börkey’s exclusive manufacturer’s rep for North America, providing sales, parts and service.
Why Börkey?
Every manufacturer claims to produce QUALITY. What does that really mean?
Börkey Quality – By every meaning of the word - Made in Germany
Description
Machine Roller Information
Model Series:
- U.S. Model Series: KL - Kit
- Manufacturer Part Number (MPN): N - PA6 - Kit
- Manufacturer product name: Roller Skate - The Solids
- For concrete floors
- Ideal for machinery installation and maintenance, and material handling applications when rollers are loaded and off-loaded frequently and when loads are rolled over short distances.
Wheels
- Outfitted with Nylon Wheels on a steel chain. Nylon wheels provide floor protection against scratching of floors. Steel wheels in comparison which are found on traditional machine rollers tend to scratch floors such as concrete. The scratching occurs when multiple rollers are not aligned or when the rollers are turned. Nylon wheels prevent this from happenning.
Features:
- Use as straight-line, low profile rollers where low height is required. Low height also minimizes required lifting to place loads onto machine rollers.
- Use with optional swivel tops and turning handles for turnability
- Non-mounted: Machine rollers can be moved from job to job
- Rollers are versatile and multi-purpose
- Can be combined to form a complete transport kit
Swivel top styles (optional):
- Smaller model sizes #1-3 are outfitted with anti-slip padded tops
- Larger model sizes #4-5 are outfitted with steel spike grid top
Included:
- Each machine roller sold separately
- Each swivel top sold separately
- Each turning handle sold separately
Quality Level Classification
- Standard Duty Roller (Levels: Standard | Heavy | Super | Ultra)
Construction:
- Solid carbon steel construction with interlocking frame design
- Nylon wheels on steel chain
Corrosion Resistance:
- Zinc-phosphate coated frame for basic corrosion resistance
Applications:
- Used as toolset by machinery movers.
- For moving moderately heavy machines, parts of machines for installation, repair, and maintenance
- For transporting equipment and other loads on steel plates, frames & tracks, or smooth concrete or asphalt
- For crane erecting
- For material handling
- Frequently used as complete transport kit
Manufacturer:
- Manufactured by Börkey
- Made in Germany
Other specs:
- Maximum safe speed: 16 feet per minute
- Rolling resistance varies greatly with floor type and condition.
Other Important Information:
- When using 4 (or more) rollers, load may rock on uneven surface, increasing load weight applied to any roller. If using 4 rollers, select rollers with double the capacity.
- Machine Rollers with larger diameter wheels will roll more easily than those with smaller wheels. Problems such as high rolling resistance on certain surface conditions can be avoided by choosing roller models with a larger load wheels.
- Precautionary measures must be taken for use on inclines to avoid run-away loads!
- When mixing and matching rollers, assure that all rollers are at the same height. Otherwise rollers will tip and consequently become point loaded and overloaded.
