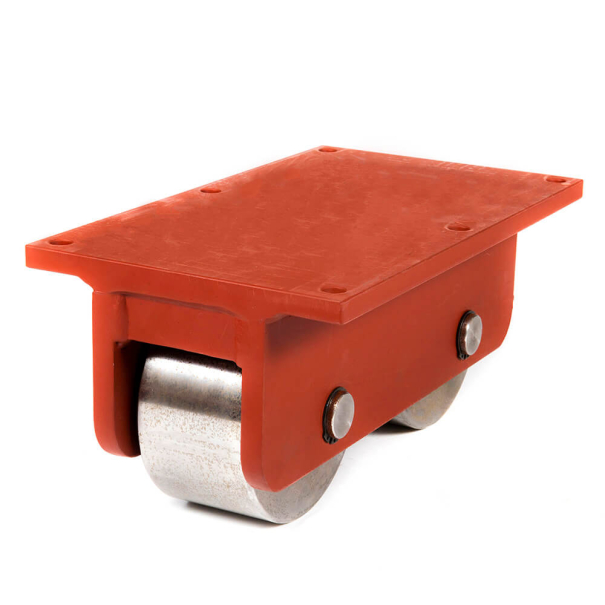

Machine Dolly - Boerkey - w Steel Wheels - Capacity 6 tons - MPN WRS 150 S
Model KW#1
Availability: Usually Ships Within Same Day
Purchase Orders Accepted with approved credit
Call Us for Emailed Quotes, Consultations, Orders, or POs
Call 1-800-786-6112
International Shipping Options
See Options in Cart
Capacity
6 tons
Height
7 inches
Includes
One dolly
Manufacturing
Original Inventor and Manufacturer of Machine Rollers
Börkey - Since 1945
Toolwell: Exclusive North American distributor for Boerkey
- US-based Sales
- Stocked and Shipped from the US
- Engineering & Lifetime Technical Support
Quick Info
Includes:
- One machine dolly (Color: Maroon)
Uses:
- Months of static load bearing
- Short distance travel | Intermittent rolling
- Easy rolling after long standstill under load
Features:
- Bolt-on Frame
- Large diameter wheels for easy rolling
Manufacturer: Börkey ("Boerkey"), Made in Germany
Advantages:
- Dollies roll easier than Chain Rollers as rolling resistance is on average 10-times lower than on steel chain rollers.
Construction:
- Robust carbon steel frame construction
- Steel load wheels
Corrosion Resistance:
- Zinc-phosphate coated frame for basic corrosion resistance.
Applications: Used in ship building, steel and mining, machine fabrication, general construction and in heavy industry. Use also upside-down as conveyor.
Börkey Color Coding
Identifying Colors:
Blue: Standard Machine Dollies available on request.
Maroon: Machine Dollies with Hardened Frame (Included on this US model)
Specifications
Capacity (kN)
60
Capacity (Tons)
6
Height (In)
7
Length (In)
14.9
Manufacturer
Boerkey
Max Speed At Full Load (Ft/Min)
390
MPN
WRS 150 S
Total Number of Wheels
2
Weight (Lbs) - Product weight
93
Weight (Lbs) - Shipping weight
93
Wheel Diameter (In)
5.9
Wheels under stress
2
Width (In)
8.6
Functionality
Product In Use
Product Guides & Documents
Which Machine Roller for which application?
Use Standard Duty Rollers for short term projects such as Machinery Moving:
Use Heavy Duty Rollers for medium-term projects such as steel erecting, general construction or machine fabrication:
Use Super Duty Rollers for permanantly loaded or long-term loaded loads for projects such as bridge construction, structure repositioning, machine and equipment repositioning, or in marine and offshore applications.
Use Ultra Duty Rollers for loads that roll frequently such as gantry cranes, rotating machinery or container hoisting.
Rolling Resistance of Machine Rollers
Roller Size affect on Rolling Resistance
Rollers with fewer, larger diameter wheels will roll more easily than those with more, but smaller wheels.
Measuring the Rolling Resistance
Rolling resistance when rollers run on steel:
KW#1 : 0.7 % of load weight
KW#2 : 0.7 %
Additional Break-out Resistance: Zero
Weather & Corrosion Resistance
The steel components of the rollers will naturally develop surface rust in weather. Minor surface rust does not decrease the performance. Long-term stationary exposure to weather and extreme conditions can degrade the rollers and the following weatherproofing are standard on models KW.
More details:
Standard, included. Months of outdoor use.
Frame zinc-phosphate coated.
Börkey rollers are made to run on a solid strong surface such as steel.
Operating the rollers across concrete floors – especially repeatedly along the same path - may damage the floor.
Machine Dolly vs. Machine Roller
Each type of roller has a different application range. Know which roller to use for which application:
Considerations When Choosing Roller Capacity
Machine Rollers should ideally be used on solid surfaces such as steel, so the weight is equally divided across each load wheel.
When operating 4 machine rollers on uneven surfaces such as concrete, select a roller with double the mathematical roller capacity to safeguard against overloading due to the load rocking and shifting. If operating more than 4 machine rollers, carefully select suitable roller capacity to prevent overloading in case load rocks on uneven surfaces and shifts weight.
SOLID/SMOOTH SURFACE or TRACK
Example: An equally distributed load of 40 tons, translates into 20 tons to be supported on each side
Capacity needed: 10 tons each machine roller
IMPERFECT/TEXTURED SURFACE
If the load rocks on an uneven surface, one roller loses contact with the load and the weight shifts to the closest roller
Capacity needed is doubled: 20 tons each machine roller
Additional Considerations
Side forces such as wind may cause uneven weight distribution on rollers resulting in possible side/ overloading
Consider selecting higher capacity machine rollers to offset the hazards of point-loads, uneven weight distribution, and side forces.
How is “Load Capacity” really rated ?
Börkey machine rollers & casters can be used at the full rated capacity in the field.
The rollers have additional safety capacity.
The rollers have additional safety capacity.
Individual machine roller & caster capacities are calculated based on moving the load across a solid level & smooth surface so that all load wheels are touching the floor and distributing the weight equally.
All Börkey products are covered under a manufacturer's warranty:
1 Year on all Börkey products
Coverage
The manufacturer warrants that the products are free from material or workmanship defects, provided they are subject to normal and intended use. The manufacturer may replace the product or may provide replacement parts, in accordance with the provisions of this warranty policy, any of its products during the duration of the warranty, if it is determined that the product has a material or manufacturer defect.
Limitations
The warranty does NOT cover damage resulting from improper use of the equipment, such as overloading, accidents, abuse, or misuse, modification, negligence after purchase, ordinary wear and tear, and/or failure to follow the product’s operating instructions or safety regulations.
Initiating a Claim
In the event of a defect in North America or South America, notify Toolwell of the circumstances in order to obtain warranty instructions. Depending on the nature of the defect, Toolwell will offer at its discretion one of two options:
- Replace the defective product. All defective dollies, skates, and jacks must be returned to Toolwell.
- Replace the defective part. The defective part may be discarded.
Warranty Period
This warranty lasts for one (1) year on all Börkey products from the date of original purchase.
DISCLAIMER
There are no warranties made by the manufacturer or the manufacturer's agent, expressed or implied, except as specifically set forth above.
Any Börkey product is purchased by buyer “as is” and “with all faults” and Börkey or the manufacturer's agent makes no warranty of merchantability or fitness for any particular purpose.
Under no circumstances shall Börkey or the manufacturer's agent be liable to buyer or any other person for any special, incidental or consequential damages, including, without limitation, damages based upon lost good will, lost sales or profits, work stoppage, delay, product failure, impairment of goods or otherwise and whether arising out of breach of warranty, breach of contract, negligence or otherwise, and in any case, Börkey’s (or the manufacturer's agent’s) liability for any and all losses and damages sustained by buyer and others, arising out of or by reason of this contract shall not exceed the original purchase price of the products upon which liability is founded.
Börkey or the manufacturer's agent is NOT responsible for ANY loss, liability, injury or damage which results from use of the products. The term “use” refers to any and all operation of the products, from misuse and abuse of the purchased tools to operation of faulty or defective products to proper use which results in a mistake or accident. Customer purchases and uses these products at his own risk.
The manufacturer and the manufacturer's agent neither assumes nor authorizes any other person to assume for it, any liability in connection with the moving equipment or sale thereof, other than expressed herein.
Börkey and Toolwell reserve the right to amend or adapt these warranty conditions with implications for the future at its discretion at any time.
In 1945 Walter Börkey invented the world's first modern machine roller skate.
Mass production of the machine rollers started in in 1951 in Hagen, Germany and over the last 70+ years Börkey imroved and expanded its product line using the latest design and manufacturing technologies.
Today Börkey is owned and operated by the 4th Generation of the Börkey family and the products are still engineered and manufactured in Germany.
With machine rollers offered and built in nearly every size and capacity, Börkey has solutions for a wide variety of industries ranging from machine transports and maintenance to oil & mining, shipbuilding, to aerospace and nuclear power.
Toolwell - America’s leading expert in load moving equipment is Börkey’s exclusive manufacturer’s rep for North America, providing sales, parts and service.
Why Börkey?
Every manufacturer claims to produce QUALITY. What does that really mean?
Börkey Quality – By every meaning of the word - Made in Germany
Also-Bought Products
Description
Machine Dolly Information
Model Series:
- U.S. Model Series: KW
- Manufacturer Part Number (MPN): WRS 150 S
- Manufacturer product name: Heavy Duty Machinery Dollies
Difference to Steel Chain Rollers:
- Large Diameter wheels roll easier than models with steel chains. Rolling resistance is on average 10-times lower than steel chain rollers.
- Less likely to lock up in dirty environments than models with steel chains.
- Larger wheel can bridge bigger obstacles.
- Dollies provide smaller contact area with surface than steel chain rollers and hence offer lower capacity.
Uses:
- Machine Dollies are ideal for months of static load bearing.
- They excel at short distance rolling.
- Intermittent travel also works very well.
- These machine dollies continue to easily roll even after long standstills under heavy loads.
Features:
- Full height machine dollies with the top loading plate provides extra support.
- Comes standard with six bolt holes.
Included:
- Each machine dolly is sold separately.
Construction:
- Robust carbon steel frame construction.
- 5.9 in. steel load wheels.
- Ball bearings.
Corrosion Resistance:
- Zinc-phosphate coated frame for basic corrosion resistance.
Applications:
- Machine dollies are perfect for moving heavy loads in shipbuilding, steel and mining, machine fabrication, steel erecting and general construction.
- They are often used on construction sites.
- Machine dollies allow transporting equipment and other loads on steel frames.
- They can be used up-side-down as a conveyor, where the casters are stationary while the load is moving across.
Manufacturer:
- Manufactured by Börkey
- Made in Germany
Other specs:
- Maximum safe speed: 390 feet per minute.
- Rolling resistance (on solid surface such as steel)
- 0.7 % of load weight
Other Important Information:
- Individual machine dolly capacities are calculated based on moving the load across a steel surface (all wheels are touching the floor and the load weight is equally divided across the caster footprint). When using 4 (or more) dollies, load may rock on uneven surface, increasing load weight applied to any dolly. Therefore, select suitable rated machinery dolly capacity carefully.
- Börkey Machine Dollies are made to run on a solid strong surface such as steel. Operating the machine dollies with steel wheels across concrete floors – especially repeatedly along the same path - may damage the floor. Machine dollies can also be used on crane rails or steel beams.
- The track or floor surface is vital for the safe transportation of the load, not just the carrying capacity of the machine dolly. Movement on tarmac and concrete is restricted, and the machine dollies should never be used on uncovered tile. For best results on tile, concrete, or tarmac we recommend putting a steel plate of a minimum of 0.4-inch thickness underneath.
- Precautionary measures must be taken for use on inclines to avoid run-away loads!
- When mixing and matching machine dollies (or different load supports), keep the load at same loading height. Otherwise dollies will tip and become point-loaded.
