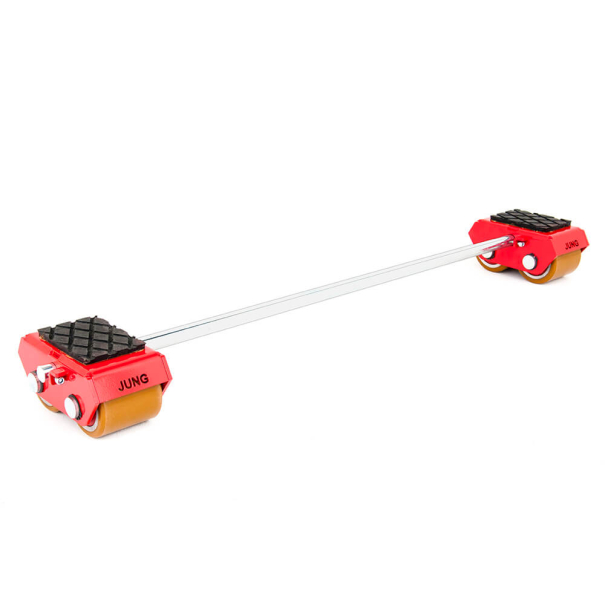

JUNG - Machine Skate - Straight-line - Capacity 3 tons / 6,600 lbs - MPN JFB3K

Model B3
Availability: Usually Ships Within 2-3 Weeks
$556.00
Purchase Orders Accepted with approved credit
Call Us for Emailed Quotes, Consultations, Orders, or POs
Call 1-800-786-6112
Buy online now or create a quote in cart
International Shipping Options
See Options in Cart
Capacity
3 Tons
6,600 lbs
Includes
Two straight-line cassettes with connecting bar

Quick Info

Includes
  • Two straight-line cassettes with connecting bar
Performance
  • Machine skates will roll & steer easily at max capacity, where others would fail to roll.
  • Possesses safety capacity above rated capacity.
Manufacturer: JUNG - Made in Germany
Application
  • All models sold separately. Mix & match individual machine skates to fit oddly shaped loads.
Wheels
  • Patented JUWAthan wheels will not damage floors.
  • Fewer large diameter wheels - compared to using greater number of small wheels - maintains functionality with larger loads.

Manufacturing




Made by JUNG - Since 1972
       25+ Years of Parts Available

Toolwell: Exclusive North American distributor for JUNG
  • US-based Sales
  • Stocked and Shipped from the US
  • Engineering & Lifetime Technical Support

Specifications

Capacity (Lbs)
6,000
Capacity (Tons)
3
Capacity Of Each Load Cassette (Tons)
1.5
Certifications
Meets ASME B30.1
Connecting Bar Length (In)
39.4
Floor Condition
For Level Floors
Height (In)
4.3
Length (In)
7.5
Manufacturer
JUNG
MPN
JFB 3 K
Type
Straight-line
Use in environment
Indoor and Outdoor
Warranty
5 Years
Weight (Lbs) - Product weight
24
Weight (Lbs) - Shipping weight
28
Wheel Diameter (In)
3.3
Wheel Type
JUWAthan
Width (In)
4.5

Wheels


3.3" Wheels   |   4.3" Skate Height
Non-Floor Damaging     For Level Floors
Patented JUWAthan+ wheels: Material baked in oven onto core for toughness & elastic performance characteristics.

Wheel Size: Fewer large diameter wheels - compared to using a greater number of small diameter wheels - maintains ease of rolling of larger loads. Wheel size 3.3" and 3.5" for level floor and 5.5" and larger additionally for asphalt use.

Wheel series: K (3.3" x 3.3" x 1.0" ID)

Product In Use

Customer supplied - Pictures
Products in use - Video

Functionality

Product Guides & Documents

Printable Details Printable Details
Engineering Drawings Engineering Drawings
Functions Explained Functions Explained
How to move loads How to move loads
Inclines Inclines
Pressure on Thin Floors Pressure on Thin Floors
Conforms to ASME B30.1 Conforms to ASME B30.1
Wheel Details
Warranty
Capacity & Safety Factor
Quality Standard
Look-Alikes
Common Configurations
Certifications
Manpower Requirements
Importance of Skate Size

Description

JUNG Machine Skates. Tri-skate System.

JUNG machine skates are Made in Germany and offer the highest reliability, ease of use and function employing superior technology, engineering, and manufacturing quality. Our equipment skates provide stable dependable support for load transport, roll & turn easily, and move loads safely even at the maximum rated capacity. These machinery skates offer the following features:

Key Advantages:

  • Machine skates will roll & steer easily at max capacity, where others would fail to roll.
  • Skates possess safety capacity above rated capacity.
  • Patented JUWAthan wheels will not damage floors.
  • Fewer large diameter wheels - compared to using greater number of small wheels - maintains functionality with larger loads.
  • All models sold separately. Mix & match individual same-height machine skates to fit oddly shaped loads.
  • Manufactured by JUNG - Made in Germany.
  • US based Sales and Lifetime Technical Support.
  • Parts available for all machine skates dating back 40+ years.

Uses:

  • Machine skates are ideal for moving machines, equipment, and material from point A to point B during installation, maintenance, and relocation.
  • Use for transporting loads on smooth concrete, asphalt, or steel plates.

Features:

  • When used in a standard configuration with a steerable front and straight-line rear skate, skates are freely steerable with maneuverability of a car: The front steers while the rear follows.
  • Steerable machine skates can be connected to a forklift or towing vehicle and skates will follow in any direction. Skates can also be pushed backwards.
  • 3-point load moving systems are safer to use than traditional 4-point systems. Skates will not slip out under tugging and pushing forces.

Manufacturer:

  • Manufactured by JUNG
  • Made in Germany
  • For 40+ years

Included:

  • Steerable front skates ("A" models) come with a pulling handle. All pulling handles on skates larger than the A3 (3-ton unit) are outfitted with a towing eye for attachment to a forklift
  • Straight-line skates ("B" models) come with two skate cassettes and connecting bar(s). Individual cassettes can be used without connecting bars.

Wheels:

  • All skates are outfitted with patented JUWAthan wheels.
  • Wheel material is specifically engineered for elasticity, providing unsurpassed floor protection, shock absorbency, largest footprint at lowest rolling and turning resistance.
  • The material molds around an obstacle and keeps on rolling instead of getting locked up by the obstacle. No stop, up & over action required like with other wheels.
  • Wheel material has extremely long life and extremely low failure rating.
  • For smooth and rough floors, for floors with cracks and dirt.
  • With sealed ball bearings against contamination with dirt for both inside and outside use.
  • Spreads out weight over larger footprint to provide low pressure on floors.
  • Low break-out & low rolling resistance.
  • Low push-pull force and low manpower requirements.
  • Reliable under toughest working conditions.
  • Wheels provide superior performance and durability over traditional polyurethane, composite, and steel wheels.

Skate Sizes:

  • Wheel size and overall skate height increases with increased load bearing capacity.
  • This assures consistently low rolling resistance and reduces the risk of point-loading wheels.
  • Larger wheels can bridge larger obstacles and can handle rougher floor conditions.

Construction:

  • Machine skates are built using 4-way steel bending technology with frames that twist under excessive forces to prevent fractures, while maintaining functionality.
  • Materials including steel and wheel material are specifically manufactured for its use. We do not use untested garden-variety materials.
  • Factory is ISO certified, uses state-of-the-art production tools including welding robots to assure each product meets consistent quality.
  • Each skate is outfitted with an anti-slip load pad.

Quality Level

  • Made in Germany
  • All products have significant safety capacity above the rated load bearing capacity so all products can be used at the maximum rated capacity.
  • All new products undergo long testing periods in the lab and in the field before release to public
  • All products are tagged with a serial number and any defects are traced.
  • All machine skates come with a 5-Year manufacturer's warranty; Exception: All electrical and air-powered products come with a 1-Year manufacturer's warranty.

Parts & Service:

  • Products are built modular so components can easily be replaced.
  • Toolwell provides lifetime technical and parts support.
  • Toolwell provides support beyond just sales. We frequently advise customers on load moving applications many years after products have been purchased.
  • Engineering level support available
