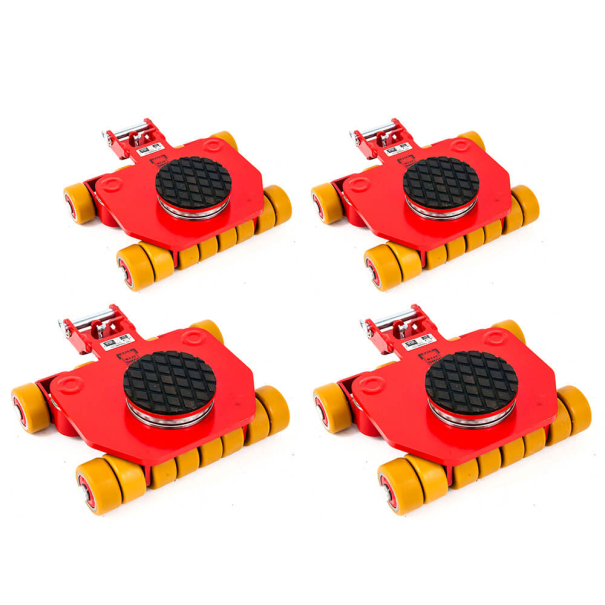

JUNG - Directional Dollies - SET of 4 - Set capacity: 20 tons - MPN JLF5x4

Model D5SET4
Availability: Usually Ships Within Same Day
$9,432.00
Purchase Orders Accepted with approved credit
Call Us for Emailed Quotes, Consultations, Orders, or POs
Call 1-800-786-6112
Buy online now or create a quote in cart
International Shipping Options
See Options in Cart
Set Capacity
20 tons
40,000 lbs
Includes
Four directional dollies

Quick Info

Includes
  • Four directional dollies.
Manufacturer: JUNG - Made in Germany

Functionality
  • Holds direction without drifting - compared to rotating dollies - while providing omni-directional maneuverability.
  • Changes direction easily.
  • Push on load and dollies will self-turn.
  • Moves loads sideways & around corners with minimum turning radius.

Performance
  • Machine skates will roll & steer easily at max capacity, where others would fail to roll.
  • Possesses safety capacity above rated capacity.
  • Patented JUWAthan wheels will not damage floors.
Application
  • Ideal for production lines and hallways where loads must travel in long straight-lines, then turned and pointed into a new straight-line.
Optional: Pulling handle for towing and connecting bars to lock into straight-line movement.

Functionality

Manufacturing




Made by JUNG - Since 1972
       25+ Years of Parts Available

Toolwell: Exclusive North American distributor for JUNG
  • US-based Sales
  • Products Stocked and Shipped from the US
  • Engineering & Lifetime Technical Support

Specifications

Capacity (Tons)
12
Capacity Per Dolly (Tons)
5
Certifications
Meets ASME B30.1
Floor Condition
For Level Floors
Height (In)
5.9
Length (In)
16.1
Manufacturer
JUNG
MPN
JLF 5 x 4
Number Of Wheels
12 each dolly
Quantity
Set of 4
Set Capacity (Tons)
20
Turning Radius
360 degrees
Use in environment
Indoor and Outdoor
Warranty
5 Years
Weight (Lbs) - Shipping weight
260
Weight Each - Product weight (Lbs)
62
Weight of Set (Lbs) - Product weight
248
Wheel Diameter (In)
3.3
Wheel Type
JUWAthan
Width (In)
16.5

Wheels


3.3" Wheels   |   4.3" Skate Height
Non-Floor Damaging     For Level Floors
Patented JUWAthan+ wheels: Material baked in oven onto core for toughness & elastic performance characteristics.

Wheel Size: Fewer large diameter wheels - compared to using a greater number of small diameter wheels - maintains ease of rolling of larger loads. Wheel size 3.3" for smaller loads and 5.5" for larger loads. Narrow rollers for optimum turning performance.

Wheel series: K-half (3.3" x 1.7" x 1.0" ID)

Product In Use

Customer supplied - Pictures
Products in use - Video

Product Guides & Documents

Printable Details Printable Details
Engineering Drawings Engineering Drawings
Functions Explained Functions Explained
Pressure on Thin Floors Pressure on Thin Floors
Conforms to ASME B30.1 Conforms to ASME B30.1
Wheel Details
Warranty
Capacity & Safety Factor
Quality Standard
Certifications
Manpower Requirements
Look-Alikes

Description

JUNG Directional Dollies

Directional Dollies should be considered as an alternative to Rotating Dollies. Rotating Dollies, designed for 360-degree maneuverability in place will easily drift and not stay in a straight line, and consequently direction must be constantly corrected. Directional Dollies will hold direction by 80% making these Dollies ideal for production lines or straight-line application while maintaining tight turning capabilities. Directional Dollies, however, require a small turning radius to point into a new direction. Rotating Dollies can change direction from straight to sideways instantaneously. Directional Dollies require a very small turning radius to turn sideways.

JUNG directional dollies are Made in Germany and offer the highest reliability, ease of use and function employing superior technology, engineering, and manufacturing quality. Our machinery transport dollies provide stable dependable support for load transport, roll & turn easily, and move loads safely even at the maximum rated capacity. These machinery movers offer the following features:

Key Advantages:

  • Directional dollies hold direction without drifting while providing omni-directional maneuverability.
  • Dollies change direction easily. Push on load and dollies will self-turn. Moves loads sideways & around corners with minimum turning radius.
  • Ideal for production lines and hallways where loads must travel in long straight-lines, then turned and pointed into a new straight-line.
  • Connect pulling handle for towing in any direction or for added steering control.
  • Connect two dollies with connecting bar to lock dollies into straight-line.
  • These type of machine skates will roll & steer easily at max capacity, where others would fail to roll.
  • Possesses safety capacity above rated capacity.
  • Patented JUWAthan wheels will not damage floors.
  • Manufactured by JUNG
  • US based Sales and Lifetime Technical Support
  • Parts available for all products dating back 40+ years.

Uses:

  • Ideal for moving a production station along a manufacturing line.
  • For transporting loads on smooth and level concrete, asphalt, or steel plates.

Features:

  • Patented exclusive functionality.
  • Leading wheel axle is stationary with rotating rear wheels, and turntable.

Manufacturer:

  • Manufactured by JUNG
  • Made in Germany
  • For 40+ years

Wheels:

  • All directional skates are outfitted with patented JUWAthan wheels.
  • Wheel material is specifically engineered for elasticity, providing unsurpassed floor protection, shock absorbency, largest footprint at lowest rolling and turning resistance.
  • Wheel material has extremely long life and extremely low failure rating.
  • For smooth and rough floors.
  • With sealed ball bearings against contamination with dirt for both inside and outside use.
  • Low break-out & low rolling resistance.
  • Low push-pull force and low manpower requirements.
  • Reliable under toughest working conditions.
  • Wheels provide superior performance and durability over traditional polyurethane, composite, and steel wheels.

Optional Accessories:

  • Pulling handles are optionally used for steering.
  • Optional connecting bars lock two dollies to guarantee 100% straight-line movement.

Construction:

  • Materials including steel and wheel material are specifically manufactured for its use. We do not use untested garden-variety materials.
  • Factory is ISO certified, uses state-of-the-art production tools including welding robots to assure each product meets consistent quality.
  • Each directional dolly is outfitted with an anti-slip load pad.

Quality Level

  • Made in Germany
  • All products have significant safety capacity above the rated load bearing capacity so all products can be used the maximum rated capacity.
  • All new products undergo long testing period in the lab and in the field before release to public.
  • All directional dollies are tagged with a serial number and any defects are traced.
  • All machine skates come with a 5-Year manufacturer's warranty; Exception: All electrical and air-powered products come with a 1-Year manufacturer's warranty.

Parts & Service:

  • Machine dollies are built modular so components can easily be replaced.
  • Toolwell provides lifetime technical and parts support.
  • Toolwell provides support beyond just sales. We frequently advise customers on load moving applications many years after products have been purchased.
  • Engineering level support available
