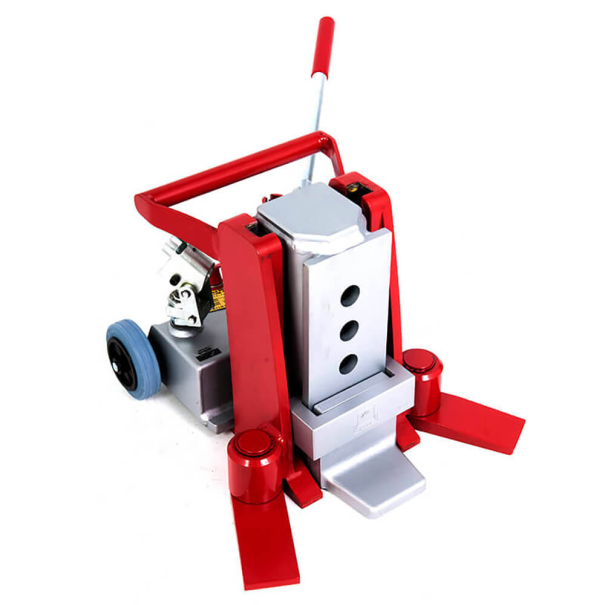

JUNG - Compact Toe Jack - Capacity 15 tons / 30,000 lbs - MPN JH15Gplus

Model 15Gplus
Availability: Usually Ships Within Same Day
$3,575.00
Purchase Orders Accepted with approved credit
Call Us for Emailed Quotes, Consultations, Orders, or POs
Call 1-800-786-6112
Buy online now or create a quote in cart
International Shipping Options
See Options in Cart
Capacity
15 tons
30,000 lbs
Includes
Hydraulic lifting jack and handle

Quick Info

Includes:
  • One hydraulic jack with pumping handle
Performance
  • Use toe jack to grab under load with thin toe.
  • Quickly adjust the jack's toe height to any starting position.
  • Patented slide shoe design counterbalances torque of forward leaning and extends life beyond any conventional toe jack.
Multi-Jack Operation
  • Use as stand-alone toe jack, use in combination with others or connect to remote pump for synchronous multiple toe jack operation.
Ease of Mind
  • Trust in the precise lowering control for delicate operations.
  • Overload protection valve prevents damage to each toe jack.
  • Stable and safe support in any position with swivel feet that adapt to available clearance.
  • Tip & Roll toe jack for easy transport.
Manufacturer: JUNG - Made in Germany

Manufacturing




Made by JUNG - Since 1972
       25+ Years of Parts Available

Toolwell: Exclusive North American distributor for JUNG
  • US-based Sales
  • Stocked and Shipped from the US
  • Engineering & Lifetime Technical Support

Specifications

Capacity (Lbs)
30,000
Capacity (Tons)
15
Certifications
Meets ASME B30.1
Cylinder Volume (cu.in.)
30.2
Incremental Toe Height Adjustment (in)
1.8
Jack Base L x W (In)
15.8 x 11.8
Jack Height Extended (In)
19.1
Jack Height Retracted (In)
12.2
Manufacturer
JUNG
Max Toe Height Extended (in)
15
Max Toe Height Starting Position (In)
8.1
Min Toe Height Starting Position (In)
0.8
MPN
JH 15 G Plus
Number Of Toe Starting Positions
5
Stroke (In)
6.9
Toe Height (In)
0.8
Usable Toe Depth (In)
2.6
Use in environment
Indoor and Outdoor
Warranty
5 Years
Weight (Lbs) - Product weight
106
Weight (Lbs) - Shipping weight
125
Working Pressure (Psi)
7540 psi

The Difference



Patented Slide Shoe Design: The mechanism counteracts the twisting forces to which all toe jacks are subjected. Watch the video on how this works:



Product In Use

Customer supplied - Pictures
Products in Use - Video

Functionality

Product Guides & Documents

Printable Details Printable Details
Engineering Drawings Engineering Drawings
MSDS for Hydraulic Oil MSDS for Hydraulic Oil
Conforms to ASME B30.1 Conforms to ASME B30.1
Functionality Functionality
How much capacity is needed How much capacity is needed
How to use with machine skates How to use with machine skates
Warranty
Certifications
Capacity
Quality Standard

Description

JUNG G-plus Compact Toe Jacks

JUNG invented the hydraulic toe jack many decades ago, and incremental improvements - in particular - to the invisible under-the-hood mechanism has created the most advanced toe jack in the world today. Other jacks have copied the look and some visible features but cannot compete with the internal workings.

JUNG toe jacks are Made in Germany and offer the highest reliability, ease of use and function employing superior technology, engineering, and manufacturing quality. These machine jacks provide stable dependable support for load lifting, even at the maximum rated capacity. These toe jacks offer the following features:

Key Advantages:

  • Grab under low clearance load with high strength thin toe.
  • Quickly adjust the jack's toe height to any starting position.
  • Patented slide shoe design counterbalances torque of forward leaning and extends life beyond any conventional toe jack.
  • Tip & Roll toe jack for easy transport.
  • Use as stand-alone toe jack, use in combination with others or connect to remote pump for synchronous multiple toe jack operation.
  • Trust in the precise lowering control for delicate operations.
  • Overload protection valve prevents damage to each hydraulic toe jack.
  • Stable and safe support in any position with slide shoe design and swivel feet that adapt to available clearance.
  • Made in Germany
  • Manufactured by JUNG
  • US based Sales and Lifetime Technical Support
  • Parts available for all products dating back 40+ years.

Uses:

  • Toe jacks are ideal for lifting machines, equipment, and material during installation, maintenance, and relocation.

Features:

  • Conventional toe jacks will want to lean forward during lifting. This causes a tendency to kick-out, creates unstable dangerous support and causes incremental non-fixable damage to the jack with each use. JUNG's G-plus and EX series toe jacks are the only jacks build with a "slide-shoe" mechanism which prevents these situations.
  • The jack's modular design allows for every component to be easily replaced.
  • Lifting and lowering of leads is easy and controlled.

Manufacturer:

  • Manufactured by JUNG
  • Made in Germany
  • For 40+ years

Included:

  • One hydraulic jack and one pumping handle.
  • Test certificate by serial number accompanies each jack.

Construction:

  • All toe jacks are assembled by welding robots to guarantee consistent quality.

Quality Level

  • Made in Germany
  • All toe jacks are pressure tested for 12+ hours and a test certificate is issued with serial number.
  • All products are tagged with a serial number and any defects are traced.
  • All JUNG products come with a 5-Year manufacturer's warranty.
    (Exception: All electrical, air-powered products and pumps come with a 1-Year manufacturer's warranty)

Parts & Service:

  • Toe jacks are built modular so components can easily be replaced.
  • Toolwell provides lifetime technical and parts support.
  • Toolwell provides support beyond just sales. We frequently advise customers on load moving applications many years after products have been purchased.
  • Engineering level support available
