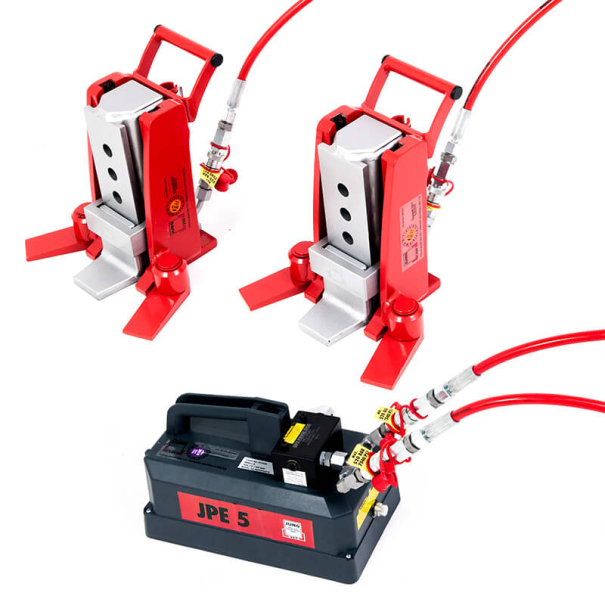

JUNG - Pump Operated Toe Jack - Set - 2 Jacks w MINI Electric Pump - Set Capacity 20 tons

Model EX10Set2E
Availability: Usually Ships Within 6 - 8 Weeks
$9,370.00
Purchase Orders Accepted with approved credit
Call Us for Emailed Quotes, Consultations, Orders, or POs
Call 1-800-786-6112
Buy online now or create a quote in cart
International Shipping Options
See Options in Cart
Set Capacity
20 tons
40,000 lbs
Includes
Two jacks, one pump and two 9ft hoses

Quick Info

Includes
  • Two hydraulic jacks, one electric pump, two 9ft hoses.
Performance
  • Use toe jack to grab under load with thin toe.
  • Quickly adjust the jack's toe height to any starting position.
  • Patented slide shoe design counterbalances torque of forward leaning and extends life beyond any conventional toe jack.
Operation
  • Pumps outfitted with 2 connection nipples to operate 1 or 2 jacks simultaneously.
  • Hydraulic jack pumps work at 7,540 psi. (Do not use with 10,000 psi pumps!)
Ease of Mind
  • Trust in the precise lowering control for delicate operations.
  • Overload protection valve prevents damage to each toe jack.
  • Stable and safe support in any position with swivel feet that adapt to available clearance.
Manufacturer: JUNG - Made in Germany

Alert! When operating multiple jacks with a single pump, each jack MUST carry the same weight or they will not lift simultaneously. For uneven loads, operate each jack independently.

Quick Start Videos

INTRO: Pump-Operated Toe Jacks
INTRO: Pump-Operated Toe Jacks
IN USE: Pump-Operated Toe Jacks
IN USE: Pump-Operated Toe Jacks

Manufacturing




Made by JUNG - Since 1972
       25+ Years of Parts Available

Toolwell: Exclusive North American distributor for JUNG
  • US-based Sales
  • Stocked and Shipped from the US
  • Engineering & Lifetime Technical Support

Specifications

Capacity (Lbs)
40,000
Capacity (Tons)
20
Capacity Of Each Jack (Tons)
10
Certifications
Meets ASME B30.1
Hose Length (Ft)
9
Jack Base L x W (In)
10.8 x 9.9
Jack Height Extended (In)
16.8
Jack Height Retracted (In)
10.8
Manufacturer
JUNG
Max Toe Height Starting Position (In)
7.1
Min Toe Height Starting Position (In)
0.6
MPN
JH 10 G Plus EX (Set 2E)
Number Of Toe Starting Positions
5
Pump Type
Mini
Set Capacity (Tons)
20
Stroke (In)
6
Toe Height (In)
0.6
Toe Start Height Min-Max (In)
0.6 - 7.1
Usable Toe D x W (In)
2.2 x 2.4
Use in environment
Indoor and Outdoor
Weight (Lbs) - Shipping weight
172
Weight Of Pump (Lbs)
20
Weight of Set (Lbs) - Product weight
126
Weight Per Jack (Lbs)
53
Working Pressure (Psi)
7540 psi

The Difference



Patented Slide Shoe Design: The mechanism counteracts the twisting forces to which all toe jacks are subjected. Watch the video on how this works:



Product In Use

Customer supplied - Pictures
Products in Use - Video

Functionality

ANSI Safety Testing



Product Guides & Documents

Printable Details Printable Details
Engineering Drawings Engineering Drawings
Functions Explained Functions Explained
MSDS for Hydraulic Jack Oil MSDS for Hydraulic Jack Oil
ANSI Safety Certificate ANSI Safety Certificate
Warranty
Certificate of Conformity
Capacity
Quality Standard
ANSI Safety Testing

Description

JUNG EX - Pump Operated Toe Jacks

JUNG invented the toe jack many decades ago, and incremental improvements - in particular to the invisible under-the-hood mechanism has created the most advanced toe jack in the world today. Other hydraulic jacks have copied the look and some visible features but cannot compete with the internal workings.

JUNG toe jacks are Made in Germany and offer the highest reliability, ease of use and function employing superior technology, engineering, and manufacturing quality. These rigging jacks provide stable dependable support for load lifting, even at the maximum rated capacity. These machine lifting jacks offer the following features:

Key Advantages:

  • Grab under low clearance load with high strength thin toe.
  • Quickly adjust the jack's toe height to any starting position.
  • Patented slide shoe design counterbalances torque of forward leaning and extends life beyond any conventional toe jack.
  • Tip & Roll toe jack for easy transport (on heavier 20- and 30-ton jacks).
  • Pumps outfitted with 2 connection nipples to operate 1 or 2 jacks simultaneously.
  • Jacks and hoses are outfitted with no-drip quick connectors.
  • Use one jack with pump to control independently from a distance or connect two or four jacks (with manifold outfitted pump) to remote pump for simultaneous multiple toe jack operation.
  • Trust in the precise lowering control for delicate operations.
  • Stable and safe support in any position with slide shoe design and swivel feet that adapt to available clearance.
  • Hydraulic jack pumps work at 7,540 psi. (Do not use with 10,000 psi pumps!).
  • Made in Germany
  • Manufactured by JUNG
  • US based Sales and Lifetime Technical Support
  • Parts available for all products dating back 40+ years.

Uses:

  • These hydraulic jacks are ideal for lifting machines, equipment, and material during installation, maintenance, and relocation.

Features:

  • Conventional toe jacks will want to lean forward during lifting. This causes a tendency to kick-out, creates unstable dangerous support and causes incremental non-fixable damage to the jack with each use. JUNG's G-plus and EX series toe jacks are the only jacks build with a 'slide-shoe' mechanism which prevents these situations.
  • The toe jack's modular design allows for every component to be easily replaced.
  • Lifting and lowering of leads is easy and controlled.

Manufacturer:

  • Manufactured by JUNG
  • Made in Germany
  • For 40+ years

Included:

  • EXSet1: One hydraulic jack, one manual pump and one 9ft hose.
  • EXSet1E: One hydraulic jack, one electric pump and one 9ft hose.
  • EXSet2: Two hydraulic jacks, one manual pump and two 9ft hoses.
  • EXSet2E: Two hydraulic jacks, one electric pump and two 9ft hoses.
  • Each hose outfitted with "No-drip" connectors both ends.
  • Each pumps outfitted with 2 nipples for simultaneous operation of 2 jacks.
  • Test certificate by serial number accompanies each jack.

Construction:

  • All toe jacks are assembled by welding robots to guarantee consistent quality.

Quality Level

  • Made in Germany
  • All toe jacks are pressure tested for 12+ hours and a test certificate is issued with serial number.
  • All products are tagged with a serial number and any defects are traced.
  • All JUNG products come with a 5-Year manufacturer's warranty.
    (Exception: All electrical, air-powered products and pumps come with a 1-Year manufacturer's warranty)

Parts & Service:

  • All machine lifting jacks are built modular so components can easily be replaced.
  • Toolwell provides lifetime technical and parts support.
  • Toolwell provides support beyond just sales. We frequently advise customers on load moving applications many years after products have been purchased.
  • Engineering level support available.

Application Use and Limitation

  • When operating multiple machinery jacks with pump, each jack must carry the same weight, or the jacks will not lift simultaneously. For uneven loads, operate each jack independently.
