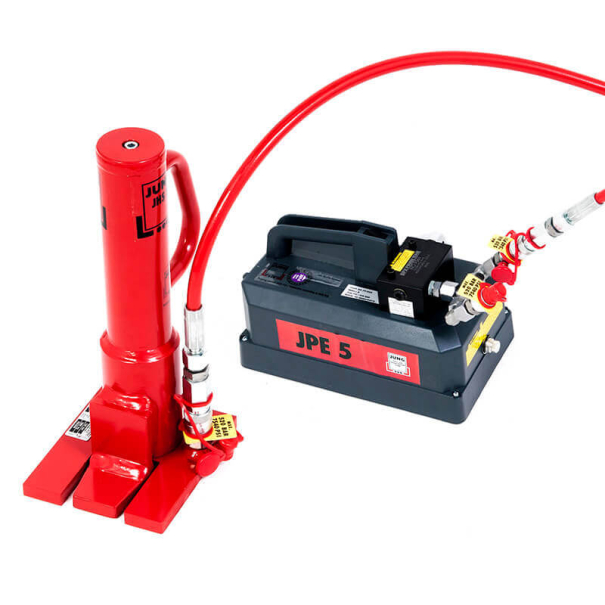

JUNG - Confined Space Toe Jack - Set - 1 Jack w MINI Electric Pump - Capacity 5 tons / 10,000 lbs

Model C5Set1E
Availability: Usually Ships Within Same Day
$6,161.00
Purchase Orders Accepted with approved credit
Call Us for Emailed Quotes, Consultations, Orders, or POs
Call 1-800-786-6112
Buy online now or create a quote in cart
International Shipping Options
See Options in Cart
Set Capacity
5 tons
10,000 lbs
Includes
One jack, one pump and one 6ft hose

Quick Info

Includes
  • One hydraulic jack, one electric pump, one 6ft hose.
Lifting
  • Safe support with machine jack's feet that adapt to available clearance.
  • Lift with toe or lift with top loading plate.
  • Use machinery jack vertically for lifting or horizontally for pushing.
For Confined Space
  • Tall machine jack with long stroke for narrow spaces. Operate from a distance.
Pump Operation
  • Operate machinery jacks from a distance with an external pump.
  • Pumps outfitted with 2 connection nipples to operate 1 or 2 jacks simultaneously.
  • Fitted with instant and drip-free hose connectors.
Manufacturer: JUNG - Made in Germany

Alert! When operating multiple jacks with a single pump, each jack MUST carry the same weight or they will not lift simultaneously. For uneven loads, operate each jack independently.

Manufacturing




Made by JUNG - Since 1972
       25+ Years of Parts Available

Toolwell: Exclusive North American distributor for JUNG
  • US-based Sales
  • Stocked and Shipped from the US
  • Engineering & Lifetime Technical Support

Specifications

Capacity (Lbs)
10,000
Capacity (Tons)
5
Certifications
Meets ASME B30.1
Hose Length (Ft)
6
Jack Base L x W (In)
8.7 x 5.7
Jack Height Extended (In)
23.2
Jack Height Retracted (In)
13.8
Length (In)
6.7
Manufacturer
JUNG
MPN
JHS 5 (Set 1E)
Pump Type
Mini
Set Capacity (Tons)
5
Stroke (In)
9.4
Toe Height (In)
0.5
Usable Toe D x W (In)
1.6 x 1.8
Use in environment
Indoor and Outdoor
Weight (Lbs) - Shipping weight
59
Weight Of Pump (Lbs)
20
Weight of Set (Lbs) - Product weight
42
Weight Per Jack (Lbs)
22
Working Pressure (Psi)
7540 psi

Product In Use

Customer supplied - Pictures
Products in Use - Video

Functionality

Product Guides & Documents

Printable Details Printable Details
Engineering Drawings Engineering Drawings
Functions Explained Functions Explained
MSDS for Hydraulic Jack Oil MSDS for Hydraulic Jack Oil
Conforms to ASME B30.1 Conforms to ASME B30.1
Warranty
Certifications
Capacity
Quality Standard

Description

JUNG C and S - Confined Space Toe Jacks

JUNG invented the hydraulic toe jack many decades ago. The C5, C10 and S10 are simple to operate jacks made for special applications in which usable space is the primarily concern.

JUNG toe jacks are Made in Germany and offer the highest reliability, ease of use and function employing superior technology, engineering, and manufacturing quality. Our machine jacks provide stable dependable support for load lifting, even at the maximum rated capacity. These toe jacks offer the following features:

Key Advantages:

  • Tall or Short: Tall machine jack with long stroke for narrow spaces or short machine jack for use with low head clearance.
  • Safe support with machine jack's feet that adapt to available clearance.
  • Lift with toe or lift with top loading plate.
  • Use machinery jack vertically for lifting or horizontally for pushing.
  • Pumps outfitted with 2 connection nipples to operate 1 or 2 jacks simultaneously.
  • Jacks and hoses are outfitted with no-drip quick connectors.
  • Use one jack with pump to control independently from a distance or connect two or four jacks (with manifold outfitted pump) to remote pump for simultaneous multiple toe jack operation.
  • Trust in the precise lowering control for delicate operations.
  • Hydraulic jack pumps work at 7,540 psi. (Do not use with 10,000 psi pumps!).
  • Made in Germany
  • Manufactured by JUNG
  • US based Sales and Lifetime Technical Support
  • Parts available for all products dating back 40+ years.

Uses:

  • These hydraulic jacks are ideal for lifting machines, equipment, and material during installation, maintenance, and relocation.

Features:

  • Lifting and lowering of loads is easy and controlled.

Manufacturer:

  • Manufactured by JUNG
  • Made in Germany
  • For 40+ years

Included:

  • CSet1: One hydraulic jack, one manual pump and one hose.
  • CSet1E: One hydraulic jack, one electric pump and one hose.
  • CSet2: Two hydraulic jacks, one manual pump and two hoses.
  • CSet2E: Two hydraulic jacks, one electric pump and two hoses.
  • Each hose outfitted with "No-drip" connectors both ends.
  • Each pumps outfitted with 2 nipples for simultaneous operation of 2 jacks.
  • Test certificate by serial number accompanies each jack.

Construction:

  • All toe jacks are assembled by welding robots to guarantee consistent quality.

Quality Level

  • Made in Germany
  • All jacks are pressure tested for 12+ hours and a test certificate is issued with serial number.
  • All products are tagged with a serial number and any defects are traced.
  • All JUNG products come with a 5-Year manufacturer's warranty. Exception: All electrical, air-powered products and all pumps come with a 1-Year manufacturer's warranty.

Parts & Service:

  • Toolwell provides lifetime technical and parts support.
  • Toolwell provides support beyond just sales. We frequently advise customers on load moving applications many years after products have been purchased.
  • Engineering level support available

Application Use and Limitation

  • When operating multiple machinery jacks with pump, each jack must carry the same weight, or the jacks will not lift simultaneously. For uneven loads, operate each jack independently.
